СКУ: RXM4AB1FD

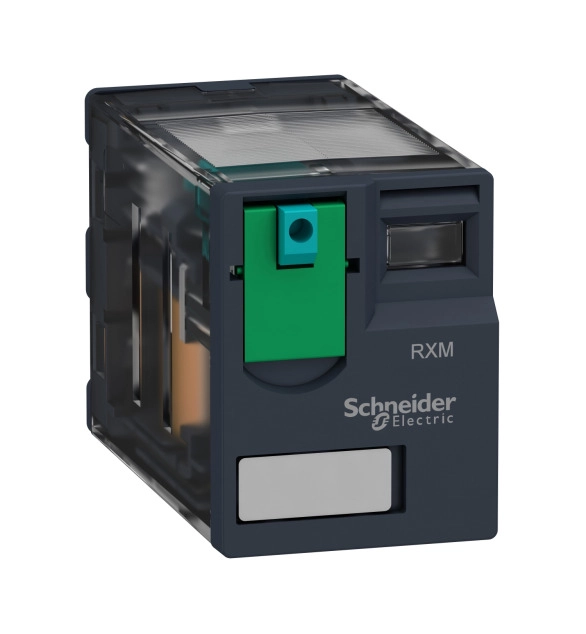

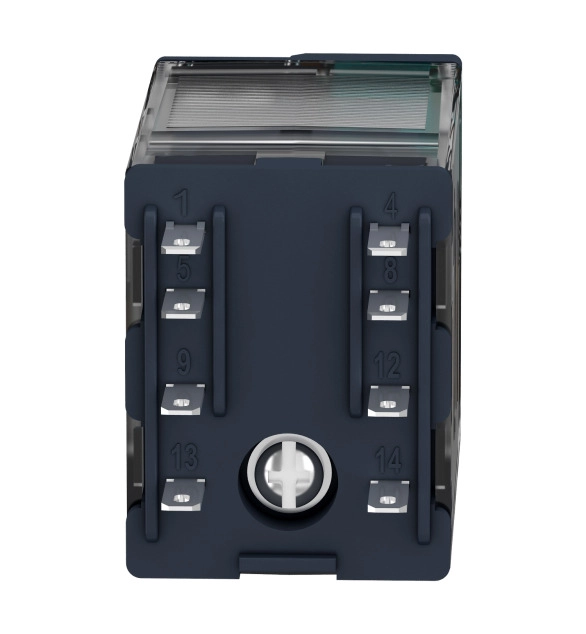

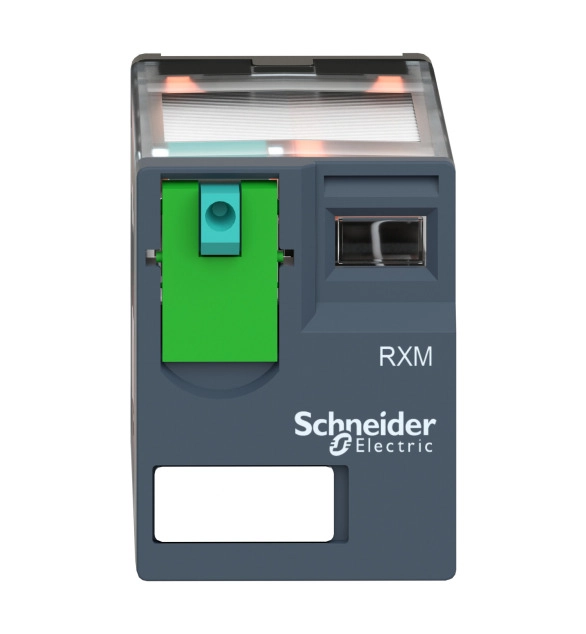

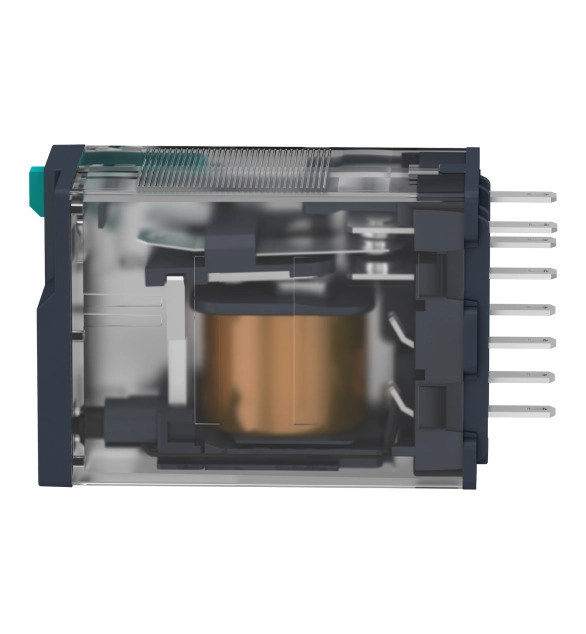

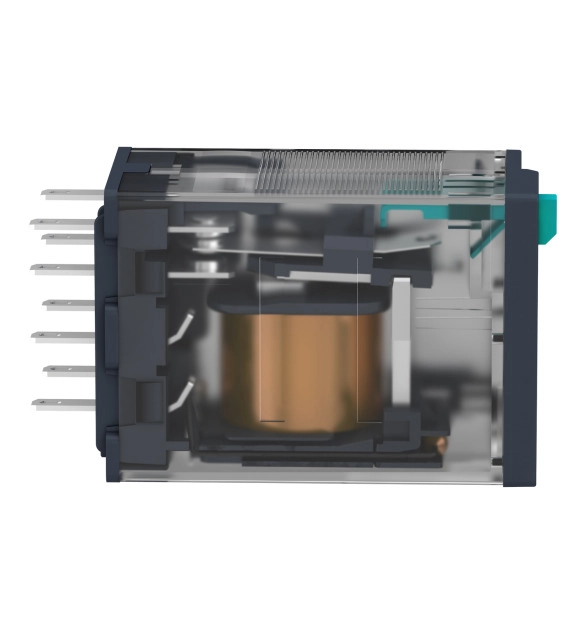

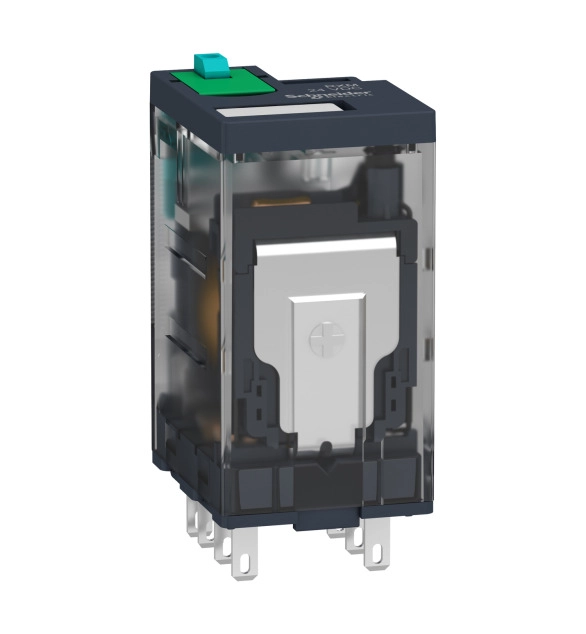

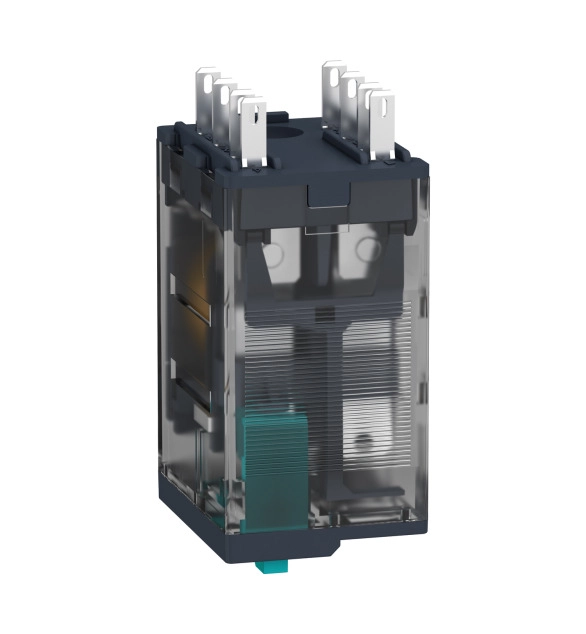

Miniature relay 6A 4CO lock 110V DC
-
Brand
Schneider Electric
-
Voltage type for actuating
EV000460
-
Degree of protection (IP)
EV006415
-
Width
21
-
Number of contacts as change-over contact
4
-
Rated control supply voltage Us at AC 50HZ
230
-
Number of contacts as normally closed contact
-
Number of contacts as normally open contact
-
With LED indication
FALSE
-
Rated control supply voltage Us at AC 60HZ
230
-
Depth
55
-
With detachable clamps
TRUE
-
Drive, switching attitude
EV005821
-
With forced-guided contacts
TRUE
-
Drive, polarization
EV005820
-
Complete with socket
FALSE
-
Material of contact insert
EV000154
-
Material of contact surface
EV000154
-
Material contact
EV000154
-
Type of electric connection
EV000414
-
Height
27
-
Type of switch contact
EV000154
-
Nominal current
3
This Harmony RXM miniature plug-in relay has a coil control voltage of 48V DC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 12A. It has large choice of number of contacts for high rated current use with space-saving design. It also offers one-step lockable test button and Power On LED for readiness. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. This product conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyds, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
