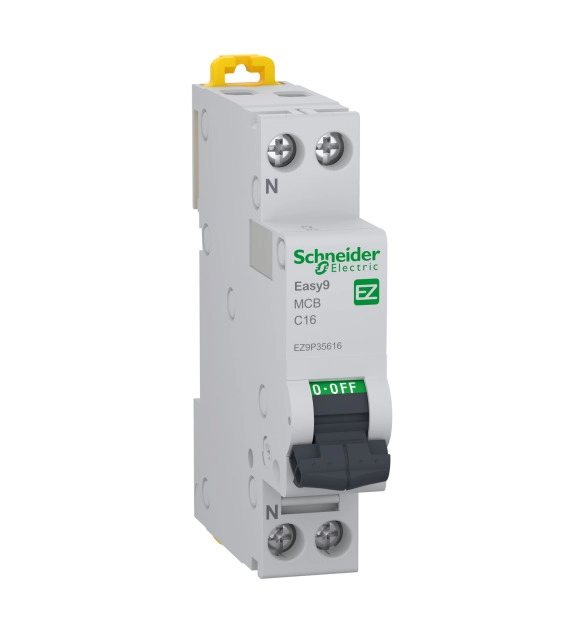

Miniature circuit breaker (MCB), Easy9, 1P+N, 16A, C curve, 6000A (IEC/EN 60898-1)

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Width in number of modular spacings
    1
  • Frequency
    50
  • Number of poles (total)
    2
  • Release characteristic
    EV000084
  • Concurrently switching neutral conductor
    TRUE
  • Flush-mounted installation
    FALSE
  • Explosion-proof
    FALSE
  • Connectable conductor cross section multi-wired
    1
  • Number of protected poles
    1
  • Rated current
    16
  • Rated voltage
    230
  • Ambient temperature during operating
    -25
  • Built-in depth
    44
  • Voltage type
    EV000460
  • Connectable conductor cross section solid-core
    1
  • Over voltage category
    3
  • Pollution degree
    2
  • Rated impulse withstand voltage Uimp
    4
  • Additional equipment possible
    FALSE
  • Current limiting class
    3
  • Rated insulation voltage Ui
    440
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    6

This Easy9 product is a low voltage miniature circuit breaker (MCB). It is a 1P+N circuit breaker with 1 protected pole and 16A In rated current and C tripping curve. The Icn rated short circuit breaking capacity goes up to 6000A at 230VAC conforming to IEC 60898-1 standard. It is compliant with IEC 60898-1 standard. This product has a protection against short circuit and a protection of cable against overloads. It has a fault tripping indication on the front panel by the position of the handle (O-I engraved). This product is dedicated for residential and small commercial buildings. It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 10000 cycles. The Ue operational voltage is 230VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz. It can be mounted on DIN rail for modular installation. Its width is 2 pitches of 9mm. The dimensions are (W) 18mm x (H) 81mm x (D) 78mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C.
