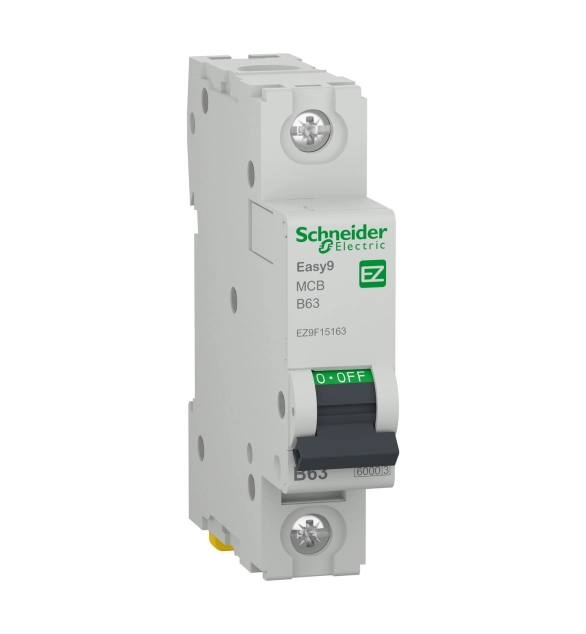

Miniature circuit breaker (MCB), Easy9, 1P, 63A, B curve, 6000A (IEC/EN 60898-1)

This Easy9 product is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 63A In rated current, and a B tripping curve. The Icn rated short circuit breaking capacity is up to 6000A at 230VAC with an operating frequency of 50Hz conforming to IEC 60898-1 standard. It complies with IEC 60898-1 standard. This product has a protection against short circuit and a protection of cable against overloads. It has a fault tripping indication on the front panel by the position of the handle (O-I engraved). This product is dedicated for residential and small commercial buildings. It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 10000 cycles. The Ue rated operational voltage is 400VAC with an operating frequency of 50Hz. The Ui rated insulation voltage is 500VAC. It has a Uimp rated impulse withstand voltage of 4kV conforming to IEC 60898-1 standard. It can be mounted on a DIN rail for modular installation. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 82mm x (D) 74mm. The product colour is grey (RAL 7035). According to IEC 60529 standard, the IP degree of protection is IP20 and becomes IP40 once in a modular enclosure. The operating temperature is from -25°C to +60°C. The storage temperature is from -40°C to +85°C.
