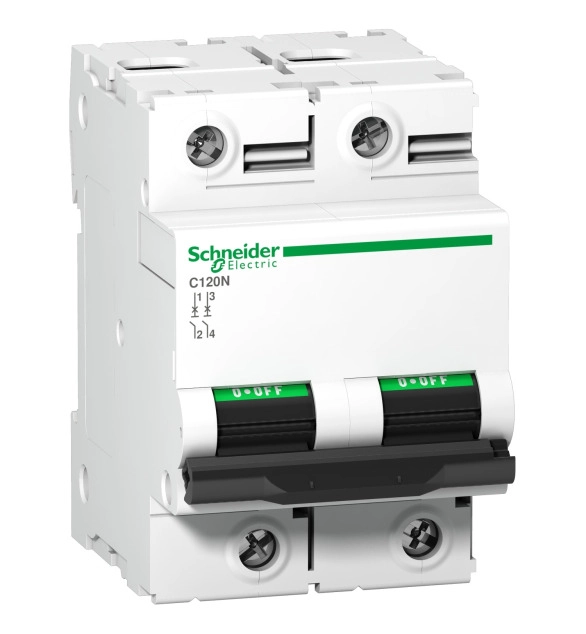

Миниатюрен автоматичен прекъсвач C120N - 2P - 80A - D крива

• Brand
  Schneider Electric
• Degree of protection (IP)
  EV006405
• Concurrently switching neutral conductor
  FALSE
• Frequency
  50
• Additional equipment possible
  TRUE
• Rated voltage
  400
• Flush-mounted installation
  FALSE
• Explosion-proof
  FALSE
• Connectable conductor cross section solid-core
  1.5
• Over voltage category
  4
• Connectable conductor cross section multi-wired
  1
• Pollution degree
  3
• Width in number of modular spacings
  4.5
• Number of poles (total)
  3
• Number of protected poles
  3
• Rated current
  125
• Release characteristic
  EV000413
• Ambient temperature during operating
  -25
• Built-in depth
  44
• Rated impulse withstand voltage Uimp
  6
• Voltage type
  EV000460
• Rated insulation voltage Ui
  500
• Current limiting class
  3
• Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
  20
• Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
  10
• Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
  10
• Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
  10
