MF550 Butterfly Valve Actuator, On/Off or 3 Position Floating Control , 230 Vac, 550 Nm, SPDT Aux Switch + Heater, IP65 | Spark & Co
  • 3D
  • 3D
|

СКУ: MF550-24F

MF550 Butterfly Valve Actuator, On/Off or 3 Position Floating Control , 230 Vac, 550 Nm, SPDT Aux Switch + Heater, IP65

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006421
  • Explosion-proof
    FALSE
  • Height
    350
  • Material housing
    EV000154
  • Suitable for manual operation
    TRUE
  • Potential free switch contact
    FALSE
  • Connection to stop valve
    EV000154
  • Adjustable position feedback signal
    TRUE
  • Supply voltage
    EV021410
  • Regulation type splitrange
    FALSE
  • Return at zero supply voltage
    FALSE
  • Regulation type on/off
    FALSE
  • Suitable for air accessory
    FALSE
  • Self-adjusting travel length
    FALSE
  • Suitable for valve
    TRUE
  • Auxiliary contacts optional
    FALSE
  • Automatic travel recognition
    FALSE
  • Allowable relative humidity
  • With mechanical setting indicator
    FALSE
  • Deactivated when closed
    FALSE
  • End contacts
    EV000494
  • With top flange direct mount according to ISO 5211
    FALSE
  • Adjustable operating range
    FALSE
  • Auxiliary contacts
    TRUE
  • Position reporting system
    EV007983
  • Degree of protection (NEMA)
    EV000070
  • Width
    370
  • Model
    EV010029
  • With safety function
    FALSE
  • Operating time
    60
  • Control signal
    EV007983
  • Energy consumption at rest
    7
  • Ambient temperature
    -29
  • Regulation type modulating
    FALSE
  • Max. electric power input
    79
  • Energy consumption in operation
    71
  • Torque
    565
  • Depth
    183

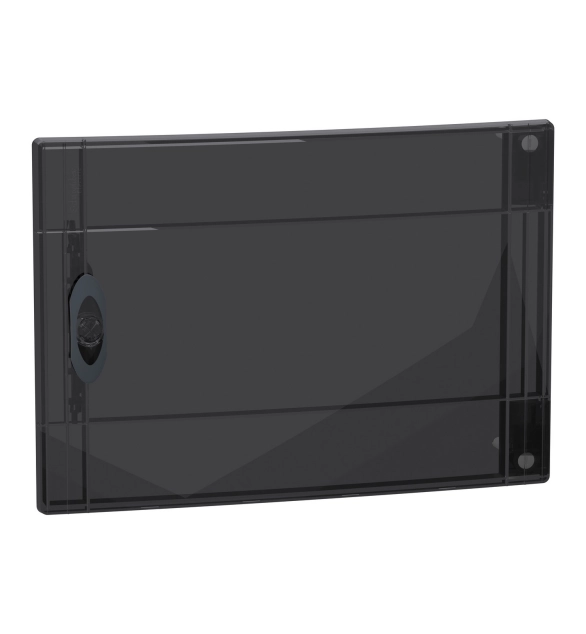

This Resi9 MP enclosure is a surface mounted modular enclosure. This plastic enclosure is composed of 1 row of 6 modules of 18mm. It can accomodate all types of modular switchgear. The IP degree of protection is IP40. It is provided with a translucid door. The colour of the front face is white (RAL 9003). It is intended for new or renovated installation in residential. It is equipped with 35 mm asymmetrical rail. It comes with 1 earth and 1 neutral terminal blocks with screwed connection terminals. The earth terminal block provides 4 outgoers (1x16mm² + 2x10mm² + 1x6mm²). The neutral one provides 4 outgoers (1x16mm² + 2x10mm² + 1x6mm²). The In rated current is up to 63A. It complies with the IEC 60670-1 and -24 standards. The total dimensions are (W) 160mm x (H) 198mm x (D) 95mm. The enclosure is made from technoplastic (back part and front face). The door is made from technoplastic. The resistance of the plastic to flames and to abnormal heat is 650°C for the door, the back part and the front face. The IK degree of protection is IK07. The operating temperature is -25°C to 60°C.
