Механична блокировка за удължена въртяща се ръкохватка, ComPacT NSX 100/160/250 | Spark & Co
  • 3D
|

СКУ: LV429369ET

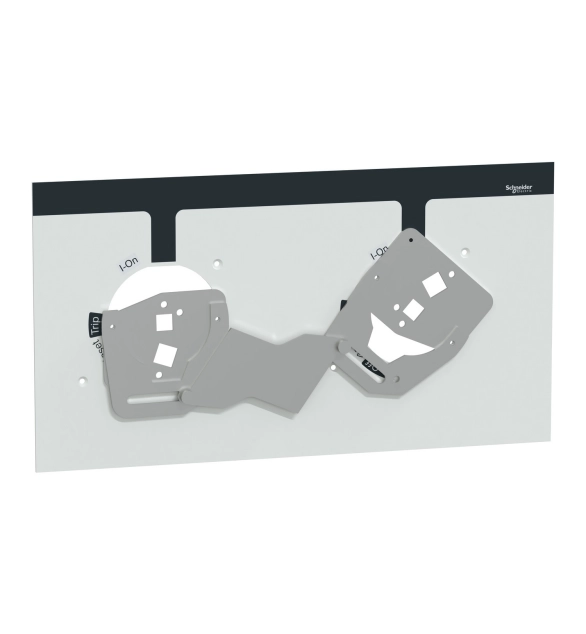

Механична блокировка за удължена въртяща се ръкохватка, ComPacT NSX 100/160/250

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Voltage type for actuating
    EV000461
  • Rated control supply voltage Us at DC
    24
  • Type of electrical connection for auxiliary- and control current circuit
    EV000415
  • Number of analogue inputs
  • Number of analogue outputs
  • Type of interface
    EV000154
  • Number of outputs, with contact
    5
  • Current detection module
    TRUE
  • Input for analogue temperature sensor
    TRUE
  • Input for earth fault detection
    TRUE
  • Rated voltage Ue at DC
    20.4
  • Type of connection system
    EV000415
  • Voltage detection module
    FALSE
  • Number of electronic outputs
  • Input for thermistor connection
    TRUE
  • Rated operation current Ie
    5

TeSys K reversing contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (2.2kW/400V). It provides 24V DC coils, 2NO built-in auxiliary contacts, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC).
