СКУ: NSYSBM20208

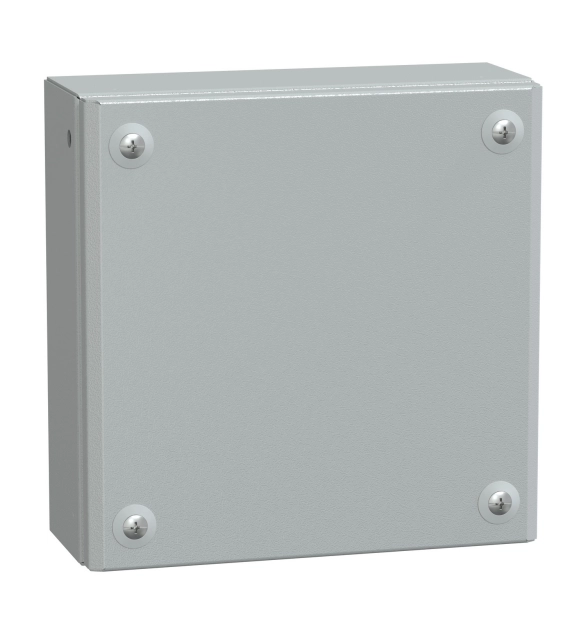

Метална кутия с непрозрачна врата 200x200x80
-
Brand
Schneider Electric
-
With mounting plate
FALSE
-
EMC-version
FALSE
-
Height
200
-
RAL-number
7035
-
Colour
EV000270
-
Surface finishing
EV008895
-
Material
EV000179
-
With glazed door
FALSE
-
Number of doors
1
-
With backside door
FALSE
-
Material quality
EV000154
-
Degree of protection (NEMA)
EV014040
-
Degree of protection (IP)
EV006422
-
Width
200
-
Connectable
FALSE
-
Depth
80
-
Detached
FALSE
-
Suitable for metrical mounting
TRUE
-
Pitched roof
FALSE
-
Intermediate mounting
FALSE
-
Corner model
FALSE
-
Mounting plate depth-adjustable
FALSE
-
With ventilation door
FALSE
-
Floor standing wall model
FALSE
-
Suitable for wall mounting
TRUE
-
Impact strength
EV008784
-
Suitable for outdoor set-up
TRUE
-
Suitable for wall built-in
TRUE
-
Pole fastening
TRUE
-
Max. permissible load of the enclosure according to IEC 62208
50
-
Max. permissible load of the mounting plate according to IEC 62208
200
-
Number of locks
PanelSeT SBM steel industrial box for a multi-purpose application It is designed for use in harsh environments It is certified by LR, DNV-GL, UL and BV and is wall mounted It is composed of 4 cover screws, a cover and a single piece body which is folded and welded The box has a captive screw PZ2 outside the sealed area It has a nominal height, width and depth of 200mm, 200mm and 80mm respectively and is made of sheet steel with a grey (RAL7035) color and polyester powder surface finish The cover can be easily removed for maintenance purposes with the help of the half turn metal screws The net weight of the enclosure is 1,62kg and it is designed to meet IEC 62208 standards with an IK10 (IEC62262) and IP66 (IEC60529) degree of protection It can be used in a temperature range of -35-60 °C for storage and -35-80 °C for operation Protection IP 66, IK10.
