СКУ: NSYSBM15308

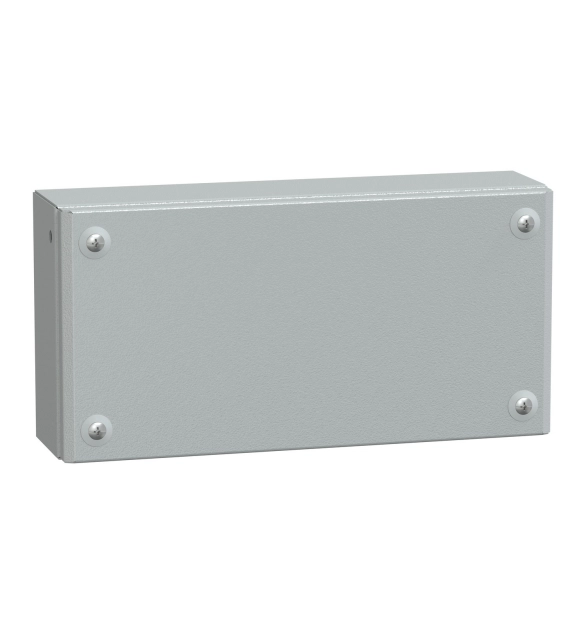

Метална кутия с непрозрачна врата 150x300x80
-
Brand
Schneider Electric
-
With mounting plate
FALSE
-
EMC-version
FALSE
-
RAL-number
7035
-
Colour
EV000270
-
Surface finishing
EV008895
-
Material
EV000179
-
Height
150
-
With glazed door
FALSE
-
Number of doors
1
-
With backside door
FALSE
-
Material quality
EV000154
-
Degree of protection (NEMA)
EV014040
-
Degree of protection (IP)
EV006422
-
Width
300
-
Connectable
FALSE
-
Depth
80
-
Detached
FALSE
-
Suitable for metrical mounting
TRUE
-
Pitched roof
FALSE
-
Intermediate mounting
FALSE
-
Corner model
FALSE
-
Mounting plate depth-adjustable
FALSE
-
With ventilation door
FALSE
-
Floor standing wall model
FALSE
-
Suitable for wall mounting
TRUE
-
Impact strength
EV008784
-
Suitable for outdoor set-up
TRUE
-
Suitable for wall built-in
TRUE
-
Pole fastening
TRUE
-
Max. permissible load of the enclosure according to IEC 62208
50
-
Max. permissible load of the mounting plate according to IEC 62208
200
-
Number of locks
PanelSeT SBM steel industrial box for a multi-purpose application It is designed for use in harsh environments It is certified by LR, DNV-GL, UL and BV This box has a nominal height, width and depth of 150mm, 300mm and 80mm respectively It is made of sheet steel and has a grey color (RAL7035) with a polyester powder surface finish The box consists of 4 cover screws, a cover and a body It has a captive screw PZ2 outside the sealed area The cover can be removed for maintenance purposes The net weight of the enclosure is 1,754kg It is wall mounted and has a flat face box type The cover is fixed with a half turn metal screw and has a plain door type The box has an IK10 (IEC62262) rating and an IP66 (IEC60529) rating It is designed to operate in an ambient air temperature of -35-80°C and store in an ambient air temperature of -35-60°C
