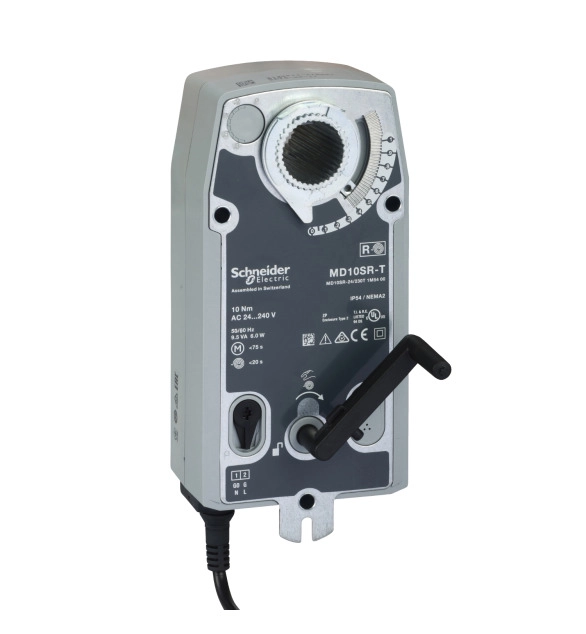

MD10-SR Damper Actuator, 2-Position, Spring Return, 110-240 Vac, 24-125 Vdc, 1 m Cable, 10 Nm, IP54

• Brand
  Schneider Electric
• Width
  130
• Explosion-proof
  FALSE
• Material housing
  EV000154
• Degree of protection (IP)
  EV006419
• Suitable for manual operation
  TRUE
• Potential free switch contact
  FALSE
• Adjustable position feedback signal
  TRUE
• Regulation type splitrange
  FALSE
• Regulation type modulating
  TRUE
• Return at zero supply voltage
  FALSE
• Self-adjusting travel length
  FALSE
• Auxiliary contacts optional
  FALSE
• Adjustable operating range
  TRUE
• Automatic travel recognition
  FALSE
• Deactivated when closed
  FALSE
• End contacts
  EV000494
• With top flange direct mount according to ISO 5211
  FALSE
• With mechanical setting indicator
  TRUE
• Supply voltage
  EV021685
• Auxiliary contacts
  TRUE
• Depth
  93
• Degree of protection (NEMA)
  EV000600
• Height
  105
• Connection to stop valve
  EV000494
• Model
  EV010029
• Position reporting system
  EV021560
• With safety function
  FALSE
• Length of connection cable
  1
• Transmission
  EV006116
• Regulation type on/off
  TRUE
• Operating time
  75
• Suitable for air accessory
  TRUE
• Max. angle of rotation
  95
• Suitable for valve
  FALSE
• Ambient temperature
  -30
• Type of safety function
  EV008419
• Control signal
  EV021430
• Max. electric power input
  9.5
• Energy consumption in operation
  6
• Torque
  10
• Allowable relative humidity
