СКУ: 8900104000

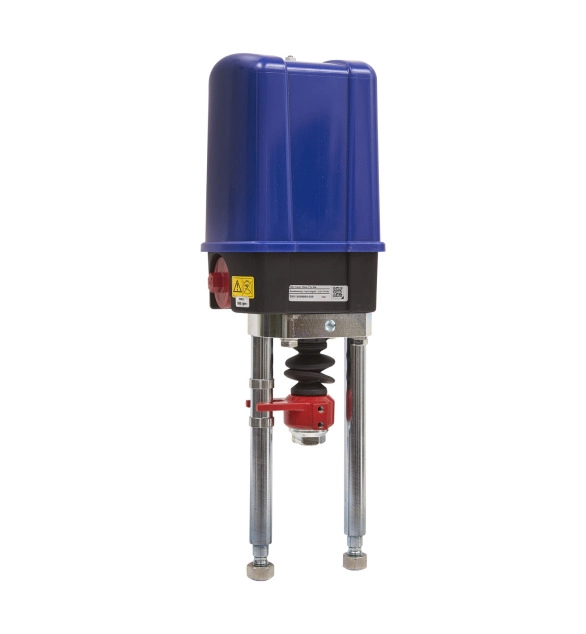

M22A Globe Valve Actuator, Modulating, 0-10 Vdc, 0-20 mAdc, 24 Vac, 2200 N, IP65
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
Type of control element
EV004095
-
With light source
FALSE
-
Spring-return
FALSE
-
Colour front ring
EV000291
-
Switching function latching
TRUE
-
With front ring
TRUE
-
Suitable for illumination
FALSE
-
Number of contacts as normally closed contact
-
Number of contacts as normally open contact
-
Number of contacts as change-over contact
-
Degree of protection (IP)
EV006422
-
Number of switch positions
3
-
Material front ring
EV000914
-
Colour button
EV000206
-
Degree of protection (NEMA)
EV022254
-
Hole diameter
31
The SpaceLogic M1500 is a precise electro-mechanical actuator for the control of large 2-way and 3-way globe valves. It has a very fine resolution PCBA board which provides good rangeability of the valve. The manual override allows the actuator to be overriden and valve position adjusted without disconnecting the power supply. It may be configured for different flow characteristics, inverse signal or sequence control. Supply voltage: 24 Vac +25%/-35%. Analog Control Input selectable Voltages: 0…10 V, 2…10 v, 0…5 V, 5…10 V, 2…6 V, 6…10 V. Force: 1500 N, IP 54 Protection class. S2 Output - Auxiliary end point switch (optional): 2 x SPDT. EMC 2014/30/EU, LVD 2014/35/EU. When an end position adjustment is made, The actuator closes the valve and then opens it fully before responding to the control signal. Conduit connection 3 x M20 screwed.
