СКУ: ZBVG14
LIGHT BLOCK 22MM PLUG-IN CONN 110ї120V
-
Brand
Schneider Electric
-
Type of fastening
EV003964
-
With integrated voltage decreasing resistor
FALSE
-
Transformer integrated
FALSE
-
Voltage type for actuating
EV000460
-
With light source
TRUE
-
Lamp type
EV000432
-
Rated voltage Ue at AC 50 Hz
110
-
With integrated diode
TRUE
-
Lamp holder
EV000154
-
Colour lamp
EV000202
-
Rated voltage Ue at AC 60 Hz
110
-
Connection type auxiliary circuit
EV000154
-
Rated voltage Ue at DC

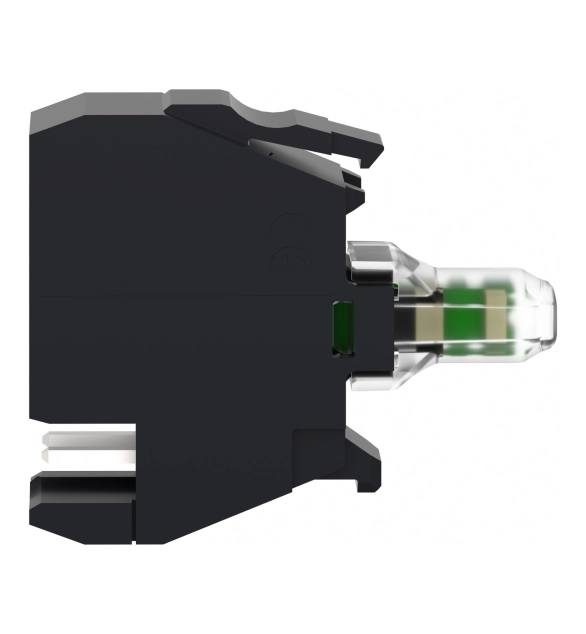

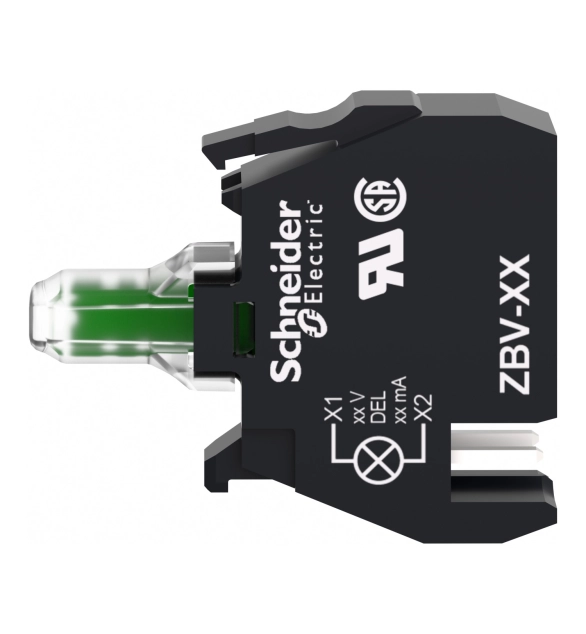

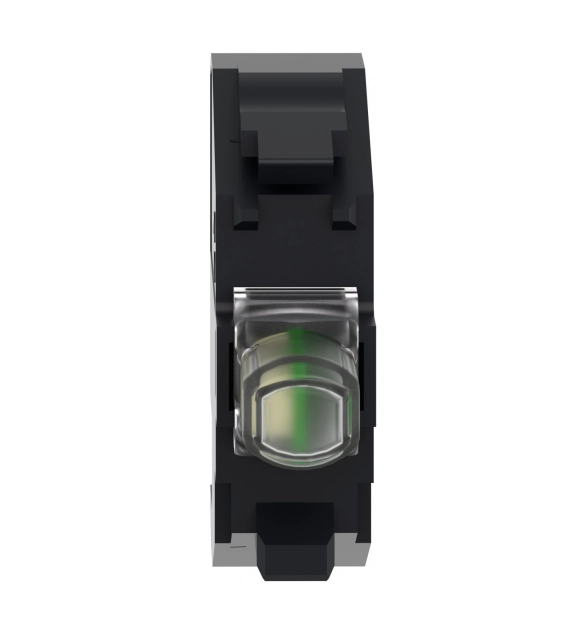

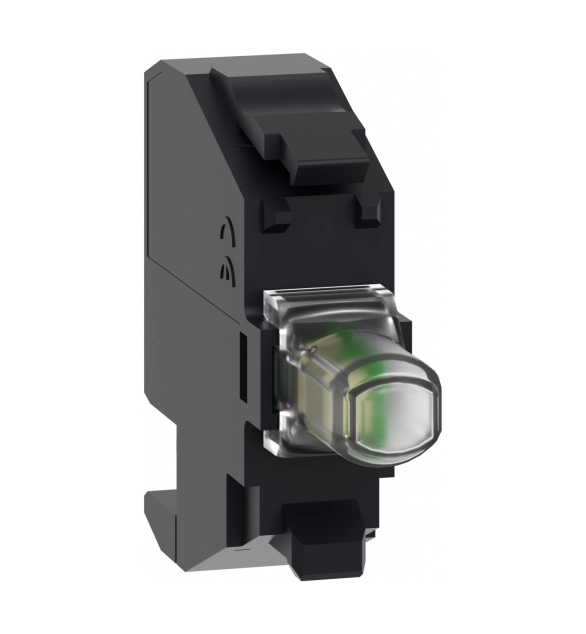

This Harmony ZB, white light block operates with a universal LED. It is supplied with 110V to 120V AC and uses plug-in terminals. It has a plastic body. It is compatible with Harmony XB4 and XB5. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
