СКУ: NSYSBX20308

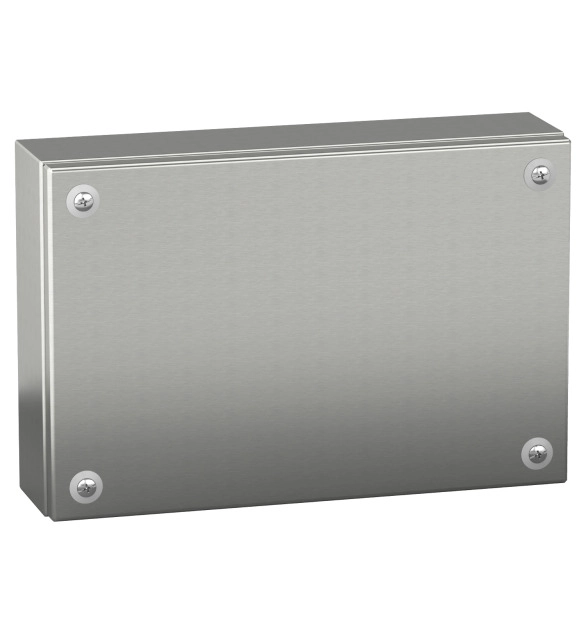

Кутия от неръждаема стомана H200xW300xD80 IP66
-
Brand
Schneider Electric
-
Extension possible
FALSE
-
Mounting method
EV000384
-
Colour
EV000270
-
Sealable
TRUE
-
Halogen free
TRUE
-
For Ex-zone gas
EV000494
-
For Ex-Zone dust
EV000494
-
Explosion-tested version
FALSE
-
Surface protection
EV000154
-
Length
300
-
With transparent cover
FALSE
-
Degree of protection (IP)
EV006422
-
Degree of protection (NEMA)
EV000070
-
Width
300
-
Material
EV000166
-
Circuit integrity
EV000494
-
Cover attachment
EV000115
-
Depth
80
-
Impact strength
EV008784
-
With cover lid
TRUE
-
Operating temperature
-35
-
Material plate thickness cabinet
1.2
-
Number of inlets
-
Number of connection clamps
PanelSeT SBX stainless steel 304L industrial box is designed for a multi-purpose application It is certified by BV, BVM, and UL and is perfect for use in harsh environments This box has a nominal height, width and depth of 200mm, 300mm and 80mm respectively The box is made with a Scotch-Brite® brushed surface finish and consists of 4 cover screw, a cover and a body It has a captive screw PZ2 outside the sealed area The cover can be removed for maintenance purposes The box is wall mounted and has a flat face box enclosure type with a half turn metal screw cover fixing The net weight of the enclosure is 2,2kg It is protected by IK10 (IEC62262) and has an IP66 rating (IEC60529) The box can withstand temperatures between -35 to 80 °C
