СКУ: SDD113107
Кръстат ключ, Алум. Intermediate switch 10AX
-
Brand
Schneider Electric
-
Number of contacts as normally open contact
1
-
Number of contacts as normally closed contact
1
-
Number of poles
1
-
Model
EV000154
-
Material
EV000139
-
With light source
FALSE
-
Transparent
FALSE
-
Colour
EV000072
-
Rated current
10
-
Number of contacts as change-over contact
1
-
Material quality
EV000403
-
With signal lamp
FALSE
-
Nominal voltage
250
-
Mounting method
EV000383
-
Compatible with Apple HomeKit
FALSE
-
Compatible with Google Assistant
FALSE
-
Compatible with Amazon Alexa
FALSE
-
Anti-bacterial treatment
FALSE
-
IFTTT support available
FALSE
-
Surface finishing
EV000146
-
Halogen free
TRUE
-
Surface protection
EV000154
-
Suitable for degree of protection (IP)
EV006405
-
Type of fastening
EV006353
-
Label space/information surface
FALSE
-
Min. depth of built-in installation box
40
-
Assembly arrangement
EV006345
-
Feedback-signal contact
FALSE
-
Width of device
73
-
Height of device
73
-
Impact strength
EV006808
-
With lighting
FALSE
-
Number of rockers
1
-
Imprint
EV000494
-
Contactless type
FALSE
-
Connection type
EV000154
-
Depth of device
37
-
Method of operation
EV000200
-
Number of revolving contacts
-
RAL-number (similar)
7047

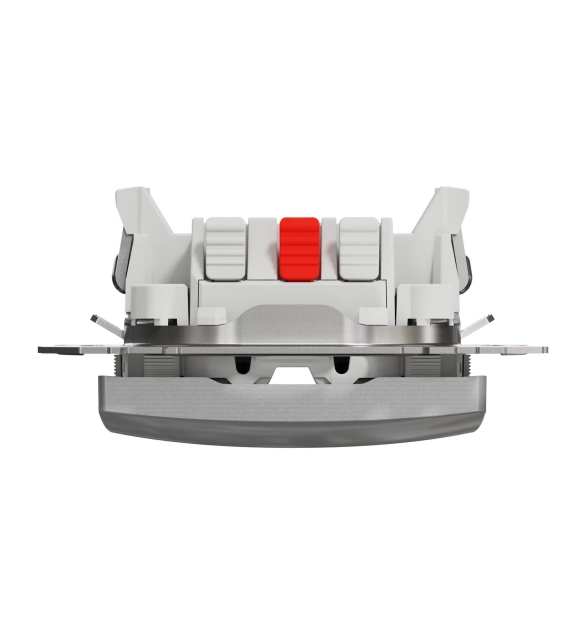

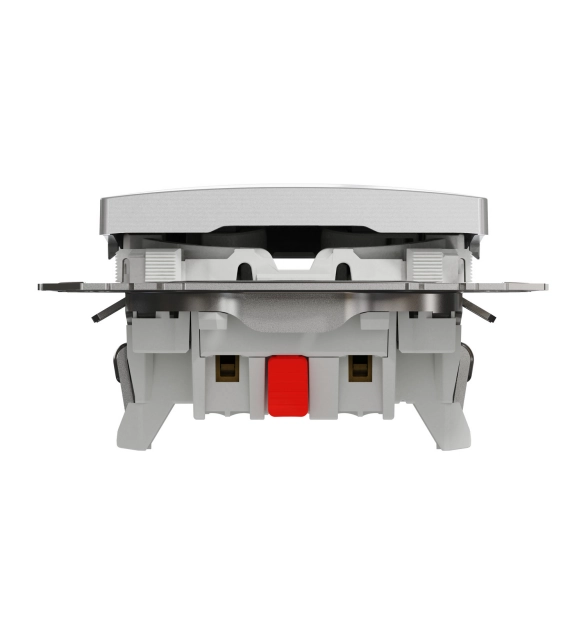

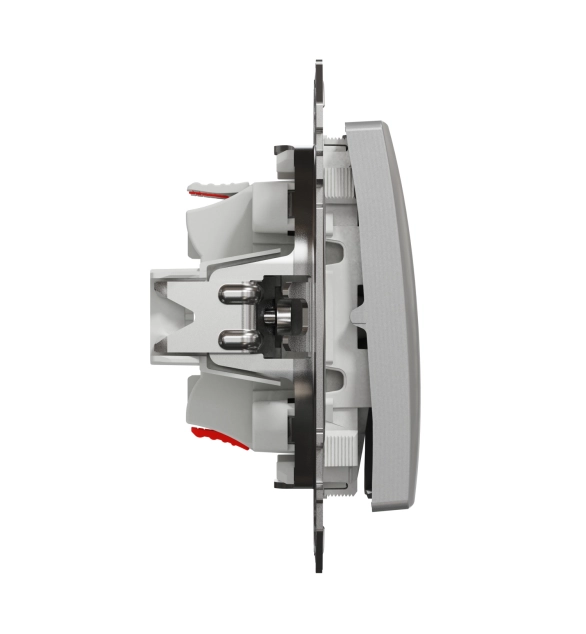

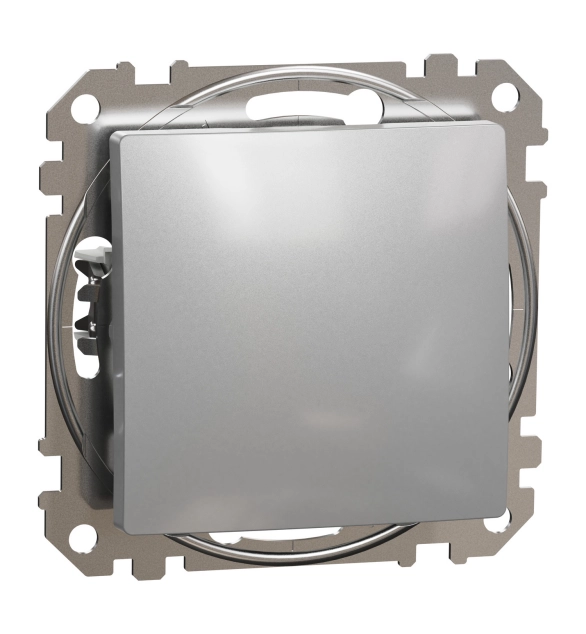

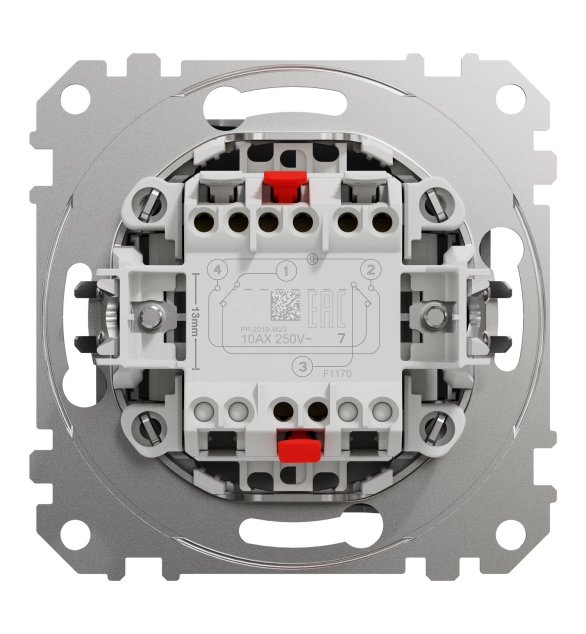

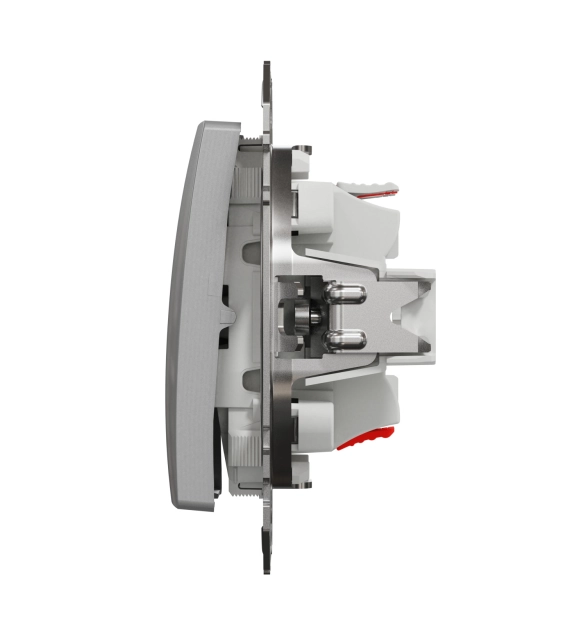

This is Schneider Electric Sedna Design & Elements Switch mechanism with fixing frame. This is a 1-way switch. A rocker/button is used for operating. The connection of the device is with screwless terminals. The fixing mode of the device is made with screws and claws. Its Ue rated operational voltage 250VAC at 50/60Hz. Its rated current is 10AX. This device is designed to be flush mounted. The dimension of the product is (W) 73mm x (H) 73mm x (D) 37mm. The Projecting depth is 24mm. It is made of thermoplastic ABS-UV stabilized material. The color of the product is white with glossy surface finish. It reaches an IP20 degree of protection. Sedna Design & Elements is a new generation of electrical switches inspired by fashion and interior design. With modern lines that reflect today’s trends and a refined aesthetic, Sedna is more than an afterthought. Sedna Design & Elements goes even further in terms of ergonomics, ease of installation and use, reliability and quality finishes. The product complies with the IEC 60669-1 standard. It has GOST-R product certification.
