СКУ: LC1D50AP5

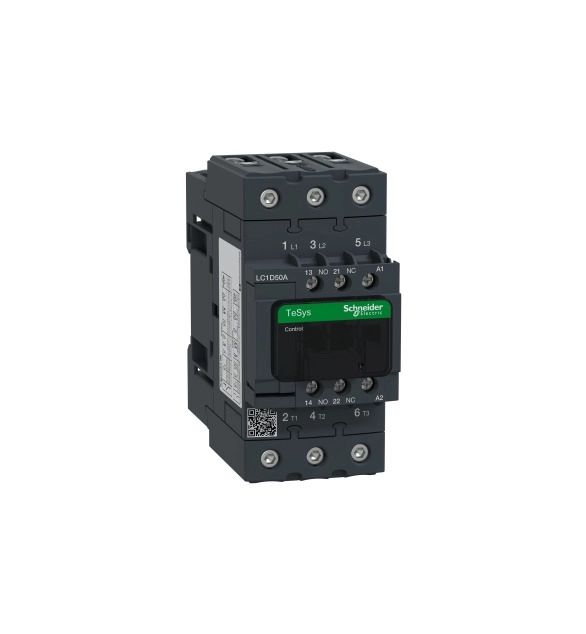

Котактор 3P EVL 50A AC3 22KW 230V 50HZ

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Rated operation power at AC-3, 400 V
    18.5
  • Voltage type for actuating
    EV000460
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Modular version
    TRUE
  • Rated control supply voltage Us at AC 50HZ
    230
  • Number of normally closed contacts as main contact
  • Number of normally open contacts as main contact
    3
  • Rated operation current Ie at AC-1, 400 V
    60
  • Rated operation current Ie at AC-3, 400 V
    40
  • Rated operation power NEMA
    22.4
  • Rated operation current Ie at AC-4, 400 V
    40
  • Rated operation power at AC-4, 400 V
    18.5

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 40A/440V AC-3 (37kW/400V). It provides a 230V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
