Контоктор TeSys CON 12A AC3 5.5KW 1NO 1NC 220VDC | Spark & Co
  • 3D
  • 3D
|

СКУ: LC1D12MD

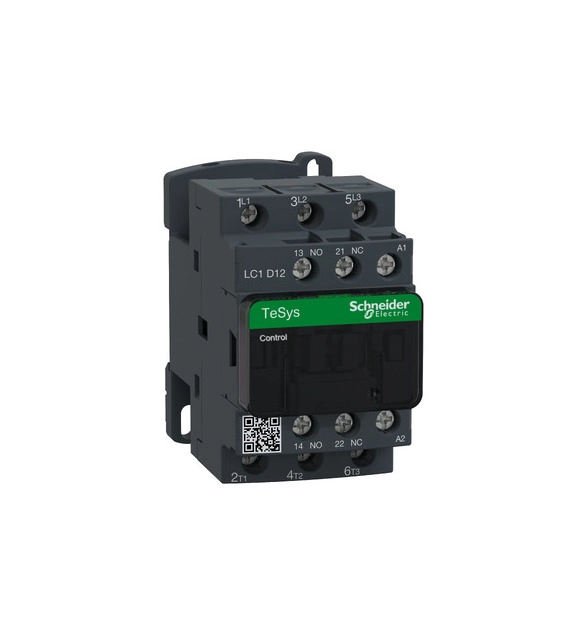

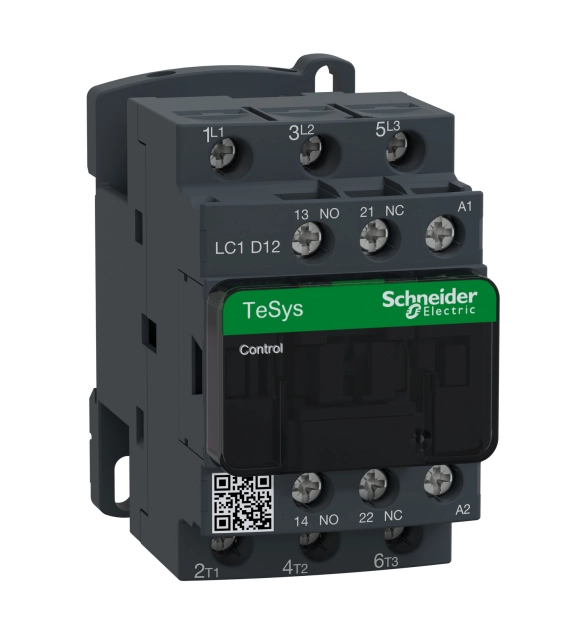

Контоктор TeSys CON 12A AC3 5.5KW 1NO 1NC 220VDC

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Rated operation power at AC-3, 400 V
    5.5
  • Voltage type for actuating
    EV000460
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Modular version
    TRUE
  • Rated control supply voltage Us at AC 50HZ
    42
  • Number of normally closed contacts as main contact
  • Number of normally open contacts as main contact
    3
  • Rated operation current Ie at AC-1, 400 V
    25
  • Rated operation power NEMA
    5.6
  • Rated operation current Ie at AC-3, 400 V
    12
  • Rated operation current Ie at AC-4, 400 V
    12
  • Rated operation power at AC-4, 400 V
    5.5

TeSys D contactor, 3 poles (1NO+1NC), for non-inductive load applications up to 32A/690V AC-1. It provides a 230V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by spring terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
