СКУ: CR1F630F7
Контактори-аксесоари 110V 50/60HZ
-
Brand
Schneider Electric
-
Voltage type for actuating
EV000509
-
Type of electrical connection of main circuit
EV008864
-
Rated control supply voltage Us at DC
110
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as normally open contact
-
Modular version
FALSE
-
Number of normally closed contacts as main contact
-
Number of normally open contacts as main contact
3
-
Rated operation power at AC-3, 400 V
335
-
Rated operation current Ie at AC-1, 400 V
1000
-
Rated operation current Ie at AC-3, 400 V
630
-
Rated operation current Ie at AC-4, 400 V
200
-
Rated operation power at AC-4, 400 V
100

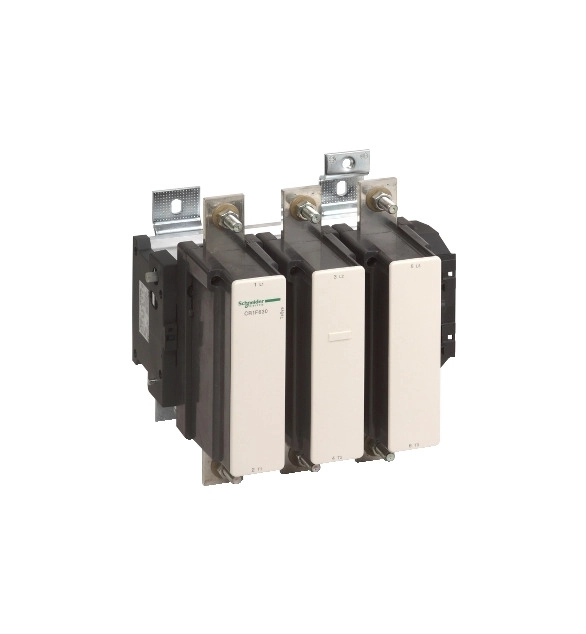

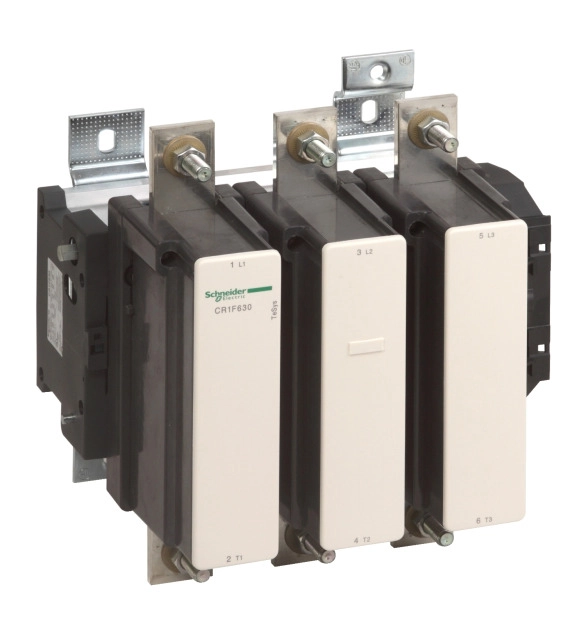

TeSys F magnetic latching contactor, 3 poles (3NO), 500A/1000V AC-3, for motor applications up to 250kW/400V. It provides a double coil 220-230V AC (50-400Hz) or DC for latching and unlatching, bolt terminals for bars or cables with lugs. Supply to the coils must be applied by pulsed contacts leading to energy saving and no sensibility to interferences for contactors remaining in closed state for long periods. For operating rates until 120 cycles/hour and environments until 70°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks (instantaneous and time delay auxiliary contacts, suppressor blocks) and connection accessories (to be ordered separately). It conforms to IEC 60158-1 and IEC 60947-4.
