Контактор, TeSys K, 4P(2NO+2NC), AC-1, 20A, 24V DC бобина с ниска консумация | Spark & Co
  • 3D
|

СКУ: LC1K0986BLS207

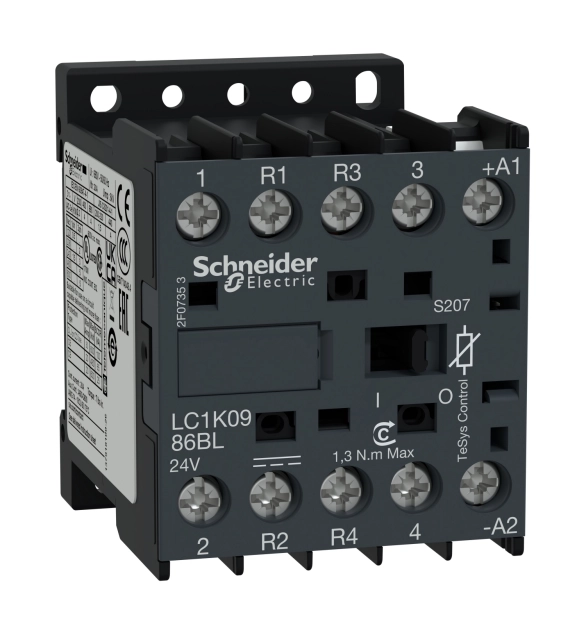

Контактор, TeSys K, 4P(2NO+2NC), AC-1, 20A, 24V DC бобина с ниска консумация

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Voltage type for actuating
    EV000461
  • Rated control supply voltage Us at DC
    24
  • Modular version
    FALSE
  • Rated operation current Ie at AC-1, 400 V
    20
  • Number of normally closed contacts as main contact
    2
  • Number of normally open contacts as main contact
    2
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as normally open contact

TeSys K contactor, 4P(2NO+2NC) for category AC-1 control applications up to 20A /440V. It is fully compliant with railway standards. It procures high reliability and durability with 30 Mcycles mechanical durability and 0.18 Mcycles electrical durability. It provides IP20 protection confirming to VDE 0106. It can cover up to 50°C operation temperature under 2000m altitude without derating . Designed for demanding applications with maximum operating rates up to 3600 cyc/h. The dimension is 58mm x 45mm x 57mm (H x W x D), mounting on rail or plate. Multi international standards certified.
