Контактор, TeSys K, 3P, AC-3/AC-3e,440V 6A, 1NC aux, 230V AC coil, | Spark & Co
  • 3D
|

СКУ: LC1K0601P72

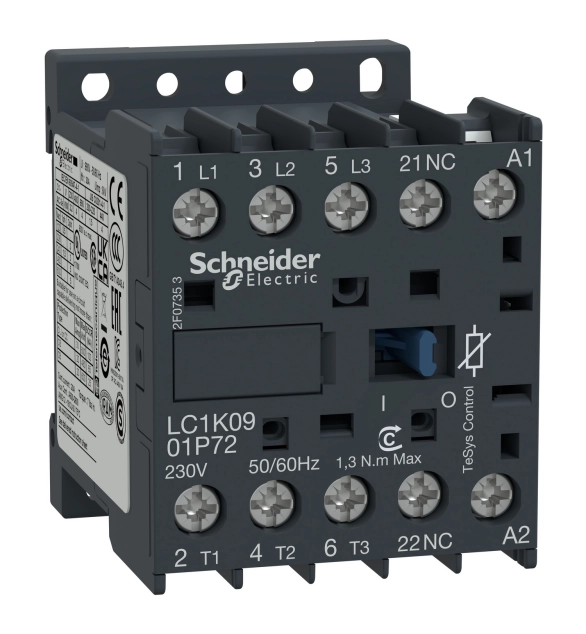

Контактор, TeSys K, 3P, AC-3/AC-3e,440V 6A, 1NC aux, 230V AC coil,

  • Brand
    Schneider Electric
  • Voltage type for actuating
    EV000509
  • Type of electrical connection of main circuit
    EV008864
  • Rated control supply voltage Us at AC 50HZ
    48
  • Rated control supply voltage Us at AC 60HZ
    48
  • Rated control supply voltage Us at DC
    48
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Modular version
    FALSE
  • Number of normally closed contacts as main contact
  • Number of normally open contacts as main contact
    3
  • Rated operation current Ie at AC-1, 400 V
    1050
  • Rated operation power at AC-3, 400 V
    450
  • Rated operation power NEMA
    600
  • Rated operation current Ie at AC-3, 400 V
    800
  • Rated operation current Ie at AC-4, 400 V
    645
  • Rated operation power at AC-4, 400 V
    375

TeSys K contactor, 4 poles (2NO/2NC), for motor control applications up to 9A/690V AC-3 (4kW/400V), and for non-inductive load control applications up to 20A/690V AC-1. It provides a 110V DC coil, without built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC).
