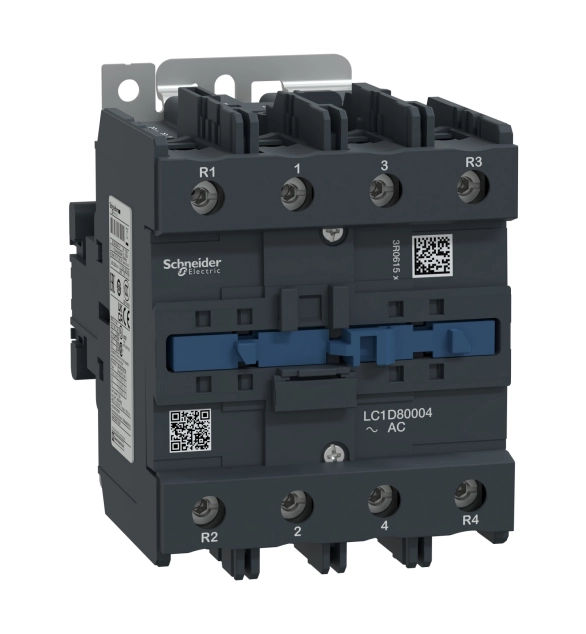

Контактор TeSys D - 4P(4 NO) -AC-1-<= 440 V 125 A - 24 V AC 50/60 Hz, бобина | Spark & Co
  • 3D
|

СКУ: LC1D80004B7

Контактор TeSys D - 4P(4 NO) -AC-1-<= 440 V 125 A - 24 V AC 50/60 Hz, бобина

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Voltage type for actuating
    EV000460
  • Rated control supply voltage Us at AC 50HZ
    24
  • Rated control supply voltage Us at AC 60HZ
    24
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as normally open contact
  • Modular version
    FALSE
  • Number of normally closed contacts as main contact
  • Rated operation current Ie at AC-1, 400 V
    125
  • Number of normally open contacts as main contact
    4

TeSys Deca contactor, 4 poles (2NO/2NC),for load control applications in category AC-1. and for non-inductive load control applications up to 80A@60℃. It provides a 400V 50/60Hz standard AC coil,without built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures reliability and durability to standard applications. Very compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EN).
