СКУ: LP4K09004BW3
Контактор с ниска консумацияT 4P BC VIS
-
Brand
Schneider Electric
-
Max. rated operation voltage Ue
400
-
Rated operation frequency
50
-
Degree of protection (IP)
EV006404
-
Number of poles, primary side
3
-
Filtering factor
14
-
Filter bank performance
25
-
Rated current at AC
36.08
-
Max. rated current (Ith) at rated voltage AC
40

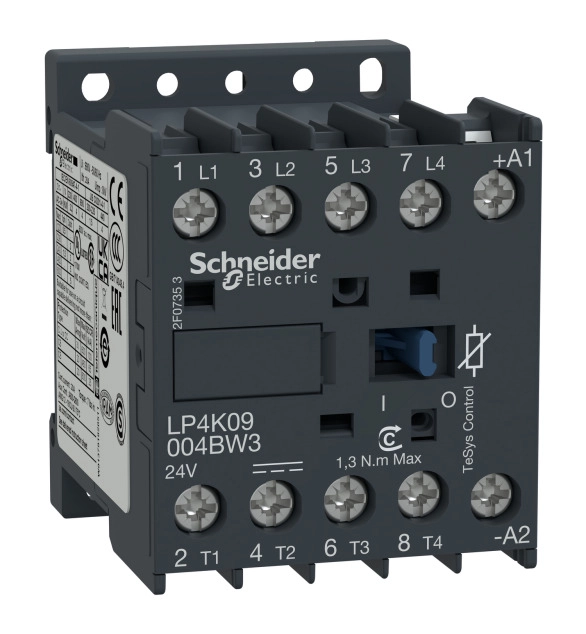

TeSys K contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW/400V). It provides a low consumption 24V DC coil with transient suppressor module, 1NC built-in auxiliary contact, connection by solder pins for printed circuit boards. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC).
