СКУ: LP4K1210SW3

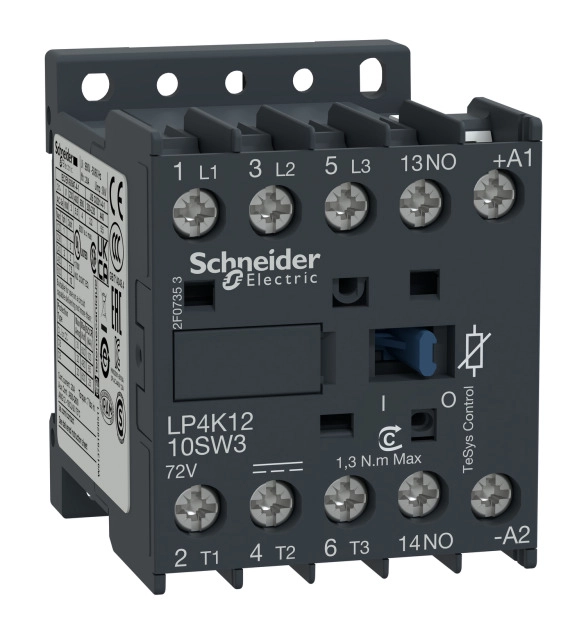

Контактор с ниска консумацияT 3P+F BC VI

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Rated operation power at AC-3, 400 V
    5.5
  • Voltage type for actuating
    EV000461
  • Number of auxiliary contacts as normally open contact
    1
  • Modular version
    FALSE
  • Rated control supply voltage Us at DC
    72
  • Number of normally open contacts as main contact
    3
  • Rated operation power at AC-4, 400 V
    2.2
  • Rated operation current Ie at AC-3, 400 V
    12
  • Rated operation current Ie at AC-1, 400 V
    20
  • Rated operation current Ie at AC-4, 400 V
    6
  • Number of auxiliary contacts as normally closed contact
  • Number of normally closed contacts as main contact

TeSys K contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3 (4kW@440V), and for non-inductive load control applications up to 20A/690V AC-1. It provides a 72V DC coil with integral suppression device, 1NO built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC).
