СКУ: A9C21144

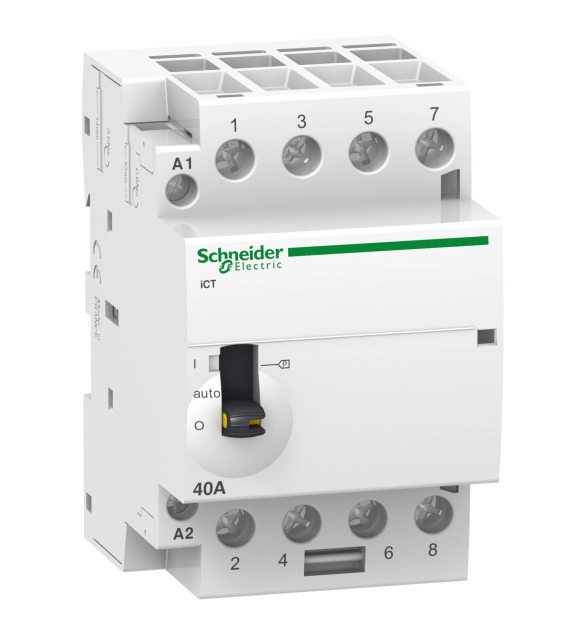

Контактор iCT 40A 4NO 24V 50Hz MO
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Width in number of modular spacings
3
-
Additional equipment possible
TRUE
-
Number of contacts as normally open contact
-
Number of contacts as normally closed contact
4
-
With day/night function
FALSE
-
Built-in depth
43.5
-
Utility category
7
-
Slider for hand switch
FALSE
-
Voltage type (operating voltage)
EV000460
-
Voltage type (excitation voltage)
EV000460
-
Hum-free
FALSE
-
Rated excitation voltage
220
-
Rated operating voltage
400
-
Max. load fluorescent lamp (parallel compensated)
10500
-
Max. incandescent lamp load
22500
-
Max. load fluorescent lamp
11550
-
Max. load fluorescent lamp (Duo circuit)
17700
-
Rated operation current
63
This Acti9 iCT is a modular contactor. It is a 2P remote and manual control device with 2 normally open contacts. The rated current is 40A for AC-7a and 15A for AC-7b. The Ue rated operational voltage is 250VAC. The Uc control voltage is 24VAC. This device could be used for control circuits. This device could be used for remote switching lighting loads, small motors (fans, mixers) or HVAC system applications. It is compatible with all the Acti9 control auxiliaries, for lighting, heating & ventilation control applications. This product is compliant with IEC/EN 61095. Electrical endurance goes up to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B The maximum switching operations is 6 per minute. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. Pollution degree is 2. It is DIN rail mountable. Its width is 4 pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 85mm x (H) 36mm x (D) 73.5mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60 °C. The storage temperature is from -40°C to 70°C.
