СКУ: LC1E400M7
Контактор Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,400A,220V АС бобина
-
Brand
Schneider Electric
-
Voltage type for actuating
EV000460
-
Type of electrical connection of main circuit
EV008864
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as normally open contact
-
Rated control supply voltage Us at AC 50HZ
415
-
Rated control supply voltage Us at AC 60HZ
415
-
Modular version
FALSE
-
Number of normally closed contacts as main contact
-
Number of normally open contacts as main contact
3
-
Rated operation power at AC-3, 400 V
335
-
Rated operation current Ie at AC-1, 400 V
1000
-
Rated operation current Ie at AC-3, 400 V
630

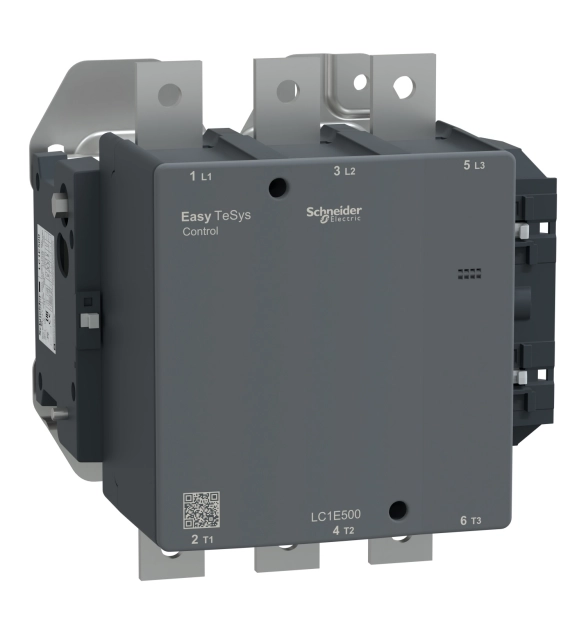

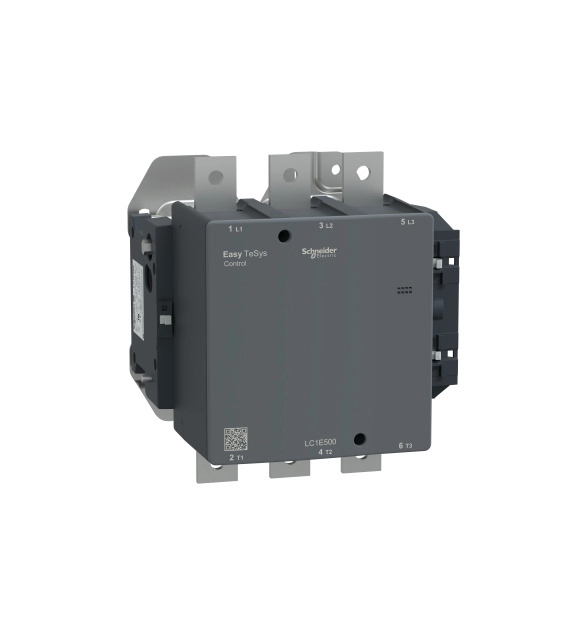

Easy TeSys Control contactor 3 poles for motor applications up to 400A 250kW/440V. It provides a 220V 50/60Hz AC coil, without built-in auxiliary contacts, power and control connections by screw clamp terminals. 213mm width for standard. It provides standard reliability and durability with 0.6 Mcycles electrical durability AC-3 and 4 Mcycles mechanical durability. Operating rates up to 2400 cycles per hour. It can cover -5°C to 55°C working temperature. No derating up to 3000m altitude. Available worldwide, it is multi-standards certified (CB scheme,CE,CCC,EAC) and Environmental compliant (RoHS/REACH).
