Контактор Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,400A,110V АС бобина | Spark & Co
  • 3D
  • 3D
|

СКУ: LC1E400F7

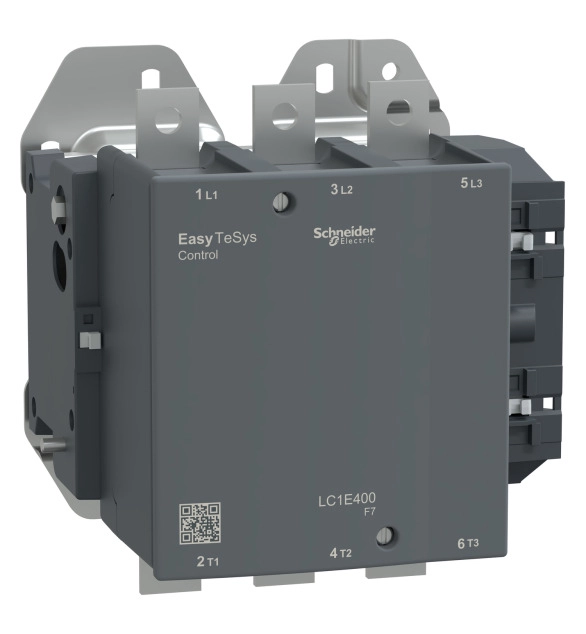

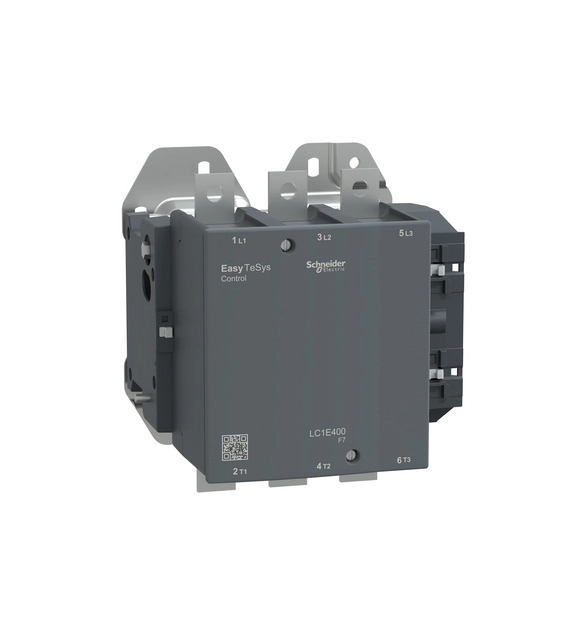

Контактор Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,400A,110V АС бобина

  • Brand
    Schneider Electric
  • Voltage type for actuating
    EV000460
  • Rated control supply voltage Us at AC 50HZ
    220
  • Type of electrical connection of main circuit
    EV008864
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as normally open contact
  • Modular version
    FALSE
  • Number of normally closed contacts as main contact
  • Number of normally open contacts as main contact
    3
  • Rated operation power at AC-3, 400 V
    160
  • Rated operation current Ie at AC-1, 400 V
    320
  • Rated operation current Ie at AC-3, 400 V
    300

Easy TeSys Control contactor 3 poles for motor applications up to 300A 185kW/440V. It provides a 220V 60Hz AC coil, without built-in auxiliary contacts, power and control connections by screw clamp terminals. 213mm width for standard. It provides standard reliability and durability with 0.5 Mcycles electrical durability AC-3 and 5 Mcycles mechanical durability. Operating rates up to 1200 cycles per hour. It can cover -5°C to 55°C working temperature. No derating up to 3000m altitude. Available worldwide, it is multi-standards certified (CB scheme,CE,CCC,EAC) and Environmental compliant (RoHS/REACH).
