СКУ: LC1D95M7

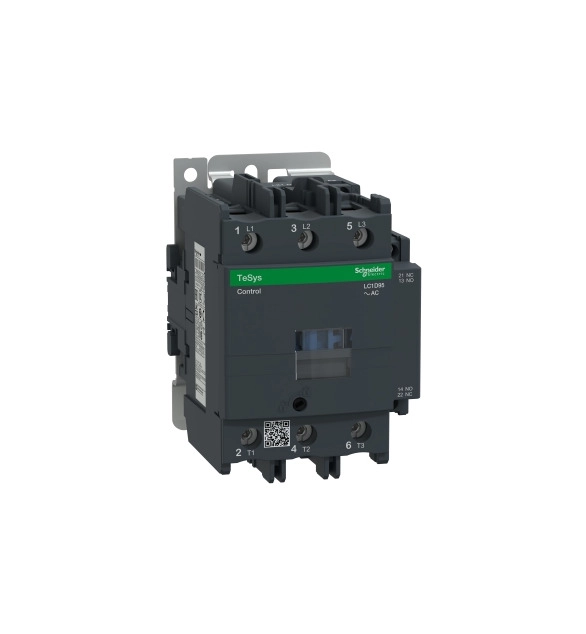

Контактор 95А 1F+1O 220V 50/60 45kW LC1D95M7

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Voltage type for actuating
    EV000460
  • Rated control supply voltage Us at AC 50HZ
    110
  • Rated control supply voltage Us at AC 60HZ
    110
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Rated operation power at AC-3, 400 V
    45
  • Modular version
    FALSE
  • Number of normally closed contacts as main contact
  • Number of normally open contacts as main contact
    3
  • Rated operation current Ie at AC-4, 400 V
    32
  • Rated operation power at AC-4, 400 V
    15
  • Rated operation current Ie at AC-1, 400 V
    125
  • Rated operation current Ie at AC-3, 400 V
    95

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 95A/690V AC-3/AC-3e (45kW/400V). It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts, power connections by screw terminals and control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Sustainability compliant. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
