СКУ: LC1D80004M7

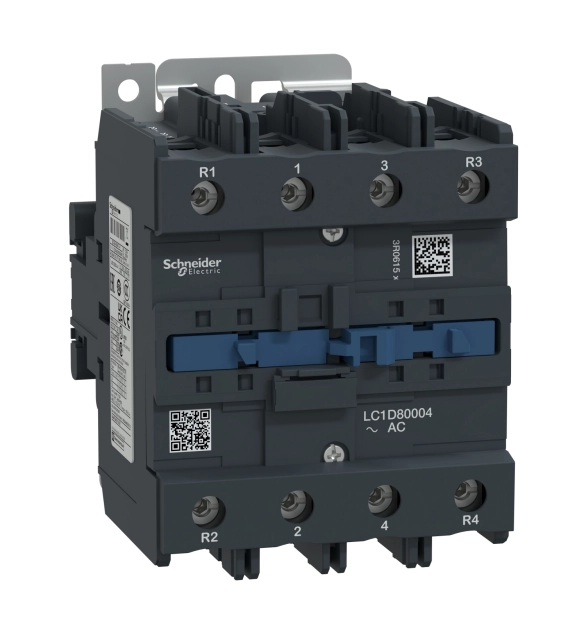

Контактор 80A 4P 220V 50/60HZ LC1D80004M7
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Rated operation power at AC-3, 400 V
22
-
Voltage type for actuating
EV000509
-
Rated control supply voltage Us at AC 50HZ
48
-
Rated control supply voltage Us at AC 60HZ
48
-
Rated control supply voltage Us at DC
48
-
Number of auxiliary contacts as normally closed contact
1
-
Number of auxiliary contacts as normally open contact
1
-
Modular version
TRUE
-
Number of normally closed contacts as main contact
-
Number of normally open contacts as main contact
3
-
Rated operation current Ie at AC-1, 400 V
80
-
Rated operation current Ie at AC-3, 400 V
50
-
Rated operation power NEMA
29.8
-
Rated operation current Ie at AC-4, 400 V
50
-
Rated operation power at AC-4, 400 V
22
TeSys Deca contactor, 4P(4NO) for category AC-1 applications up to 125A /440V. It provides with 380V 50/60 Hz coil, with no auxiliary contacts, power and control connections by screw clamp terminals. It procures with 4 Mcycles mechanical durability and 0.8 Mcycles electrical durability. It provides IP20 protection on front face conforming to IEC 60529. It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude. Designed for demanding applications with maximum operating rates up to 3600 cycles per hour under maximum 60°C. The dimension is 127mm x 96mm x 125mm (H x W x D), mounting on rail or plate. Multi standards certified(UL,LROS,DNV,GOST,RINA,CSA,CCC,BV,GL).
