СКУ: LC1D80MD

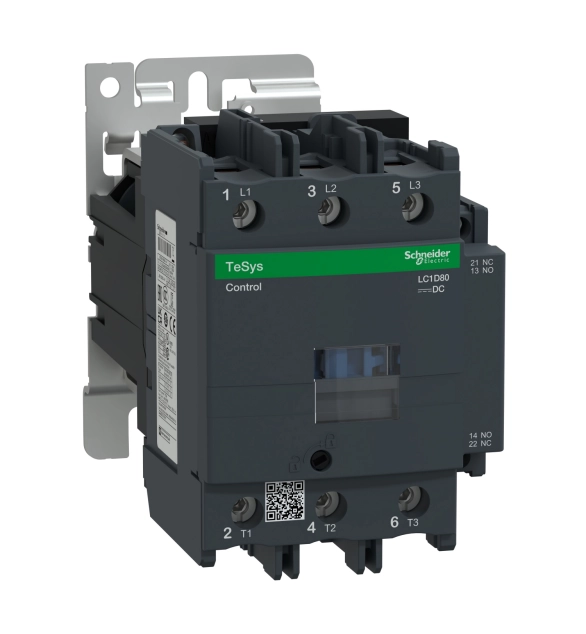

Контактор 80А 1F+1O 220V DC LC1D80MD

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Rated operation power at AC-3, 400 V
    37
  • Voltage type for actuating
    EV000461
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Rated control supply voltage Us at DC
    220
  • Modular version
    FALSE
  • Number of normally open contacts as main contact
    3
  • Rated operation current Ie at AC-4, 400 V
    32
  • Rated operation power at AC-4, 400 V
    15
  • Rated operation current Ie at AC-1, 400 V
    125
  • Rated operation current Ie at AC-3, 400 V
    80
  • Number of normally closed contacts as main contact

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 80A/690V AC-3/AC-3e (37kW/400V). It provides a 220V DC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Sustainability compliant. Multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine).
