Контактор 4P VIS 115V 50/60HZ | Spark & Co
  • 3D
|

СКУ: LC1K09004FE7

Контактор 4P VIS 115V 50/60HZ

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Voltage type for actuating
    EV000460
  • Modular version
    FALSE
  • Rated control supply voltage Us at AC 50HZ
    115
  • Rated control supply voltage Us at AC 60HZ
    115
  • Rated operation current Ie at AC-1, 400 V
    20
  • Number of normally open contacts as main contact
    4
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as normally open contact
  • Number of normally closed contacts as main contact

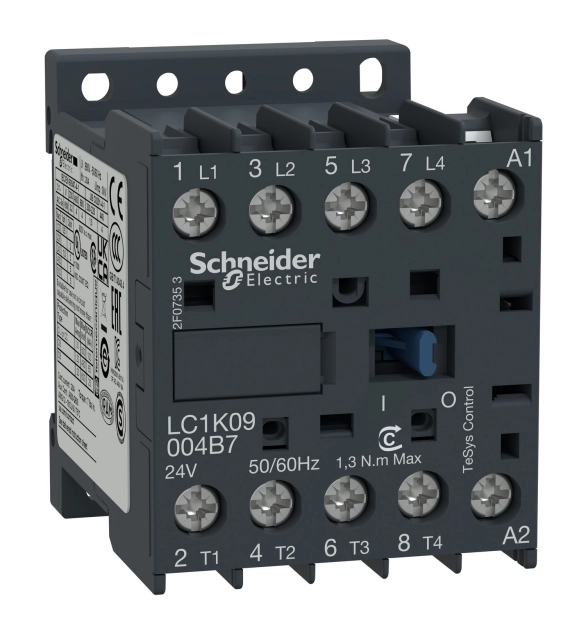

TeSys K contactor, 4 poles (4NO), for motor control applications up to 9A/690V AC-3 (4kW/400V). and for non-inductive load control applications up to 20A/690V AC-1. It provides a 115V 50/60Hz AC coil, connection by screw clamp connections. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC).
