Контактор 40A 2P+2R 24V CC | Spark & Co
  • 3D
|

СКУ: LP1D40008BD

Контактор 40A 2P+2R 24V CC

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Voltage type for actuating
    EV000461
  • Rated control supply voltage Us at DC
    24
  • Modular version
    FALSE
  • Rated operation current Ie at AC-1, 400 V
    60
  • Number of normally closed contacts as main contact
    2
  • Number of normally open contacts as main contact
    2
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as normally open contact

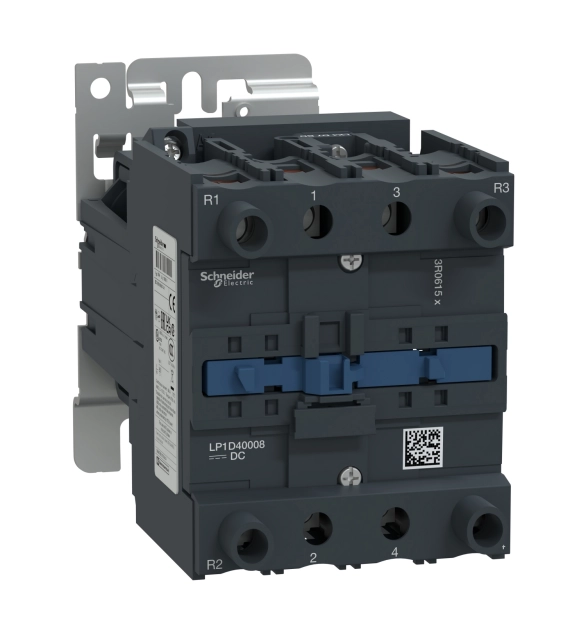

TeSys Deca contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 60A/690V AC-1. It provides a 24V DC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, front mounting auxiliary contact blocks can be added (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
