СКУ: LP1D40008MD

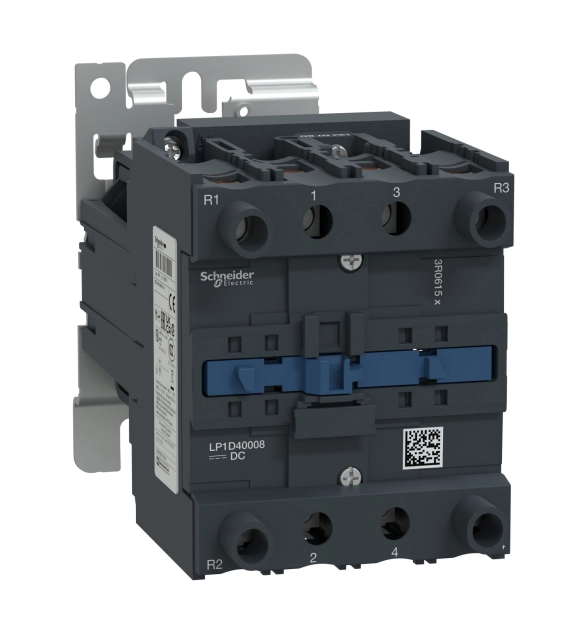

Контактор 40A 2P+2R 220V CC
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Voltage type for actuating
EV000461
-
Rated control supply voltage Us at DC
220
-
Modular version
FALSE
-
Rated operation current Ie at AC-1, 400 V
60
-
Number of normally closed contacts as main contact
2
-
Number of normally open contacts as main contact
2
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as normally open contact
TeSys Deca contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 60A/690V AC-1. It provides a 220V DC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, front mounting auxiliary contact blocks can be added (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
