СКУ: LC7K09015M7

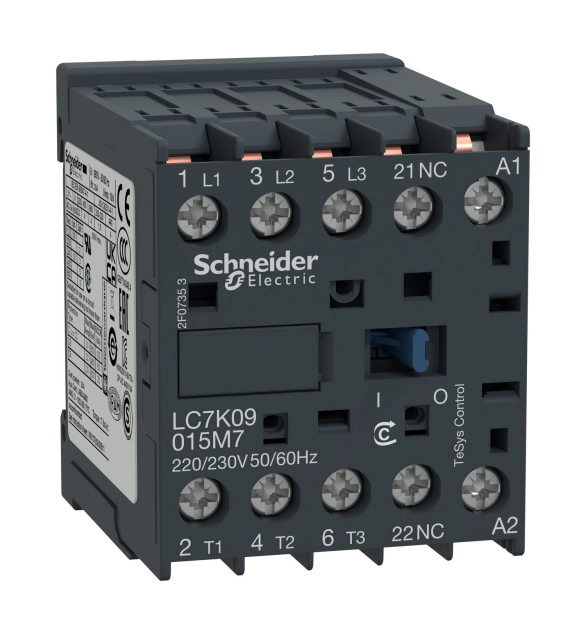

Контактор 3P+O VIS 220/230V 50
-
Brand
Schneider Electric
-
Rated operation power at AC-3, 400 V
4
-
Voltage type for actuating
EV000460
-
Rated control supply voltage Us at AC 50HZ
220
-
Rated control supply voltage Us at AC 60HZ
220
-
Number of auxiliary contacts as normally closed contact
1
-
Modular version
FALSE
-
Number of normally open contacts as main contact
3
-
Rated operation current Ie at AC-3, 400 V
9
-
Rated operation power at AC-4, 400 V
2.2
-
Rated operation current Ie at AC-1, 400 V
20
-
Rated operation current Ie at AC-4, 400 V
6
-
Type of electrical connection of main circuit
EV003963
-
Number of auxiliary contacts as normally open contact
-
Number of normally closed contacts as main contact
TeSys K contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW/400V), and for non-inductive load control applications up to 20A/690V AC-1. It provides a 220/230V 50/60Hz AC coil,1NC built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC).
