СКУ: LC1D40A3P7

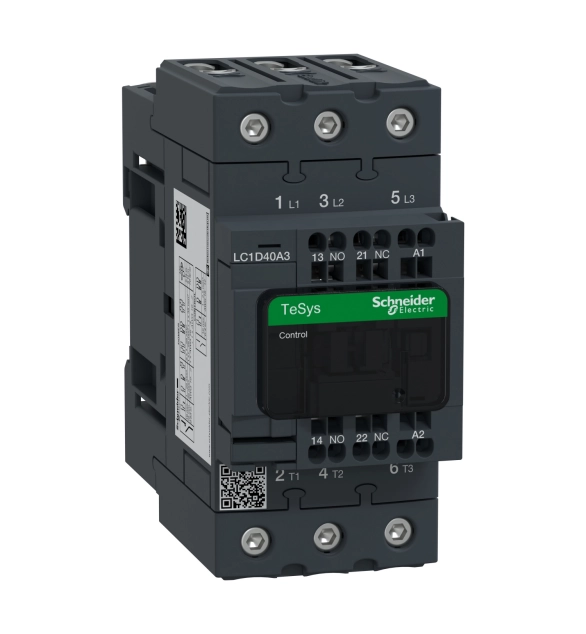

Контактор 3P EVERLINK AC3 40A бобина
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Rated operation power at AC-3, 400 V
30
-
Voltage type for actuating
EV000460
-
Number of auxiliary contacts as normally closed contact
1
-
Number of auxiliary contacts as normally open contact
1
-
Modular version
FALSE
-
Rated control supply voltage Us at AC 50HZ
115
-
Rated control supply voltage Us at AC 60HZ
115
-
Number of normally closed contacts as main contact
-
Number of normally open contacts as main contact
3
-
Rated operation current Ie at AC-4, 400 V
25
-
Rated operation power at AC-4, 400 V
11
-
Rated operation current Ie at AC-1, 400 V
80
-
Rated operation current Ie at AC-3, 400 V
65
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3/3e (11kW@400V). It provides a 24V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Pack of 10 units. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
