СКУ: LP4K090087BW3

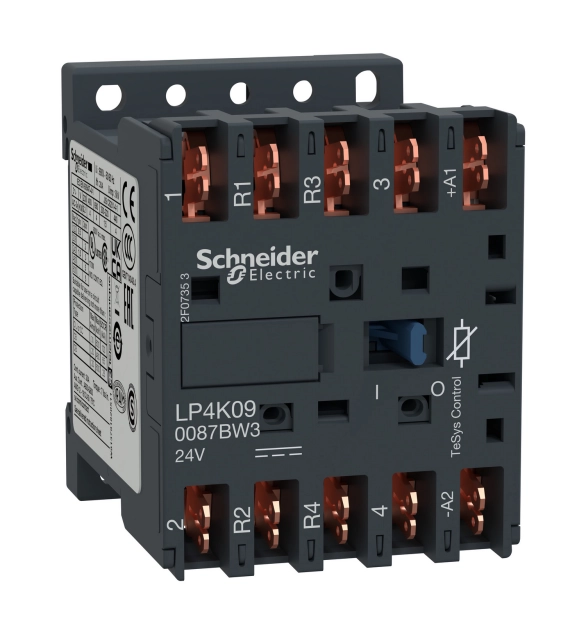

Контактор 2P+2R VIS 24V DC
-
Brand
Schneider Electric
-
Voltage type for actuating
EV000461
-
Rated control supply voltage Us at DC
24
-
Modular version
FALSE
-
Rated operation current Ie at AC-1, 400 V
20
-
Number of normally closed contacts as main contact
2
-
Number of normally open contacts as main contact
2
-
Type of electrical connection of main circuit
EV003968
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as normally open contact
TeSys K contactor, 4 poles (2NO/2NC), for motor control applications up to 9A/690V AC-3 (4kW@400V), and for non-inductive load control applications up to 20A/690V AC-1. It provides a 24V DC coil with integral suppression device, without built-in auxiliary contact, connection by faston connectors. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC).
