СКУ: GC2511M5
Контактор 25A 1F+1O 220/240V
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Width in number of modular spacings
2
-
Additional equipment possible
TRUE
-
Number of contacts as normally closed contact
-
Number of contacts as normally open contact
4
-
Rated operation current
25
-
Rated operating voltage
250
-
Utility category
7
-
Slider for hand switch
FALSE
-
Voltage type (operating voltage)
EV000460
-
Voltage type (excitation voltage)
EV000460
-
Rated excitation voltage
220
-
Max. load fluorescent lamp (parallel compensated)
800
-
With day/night function
TRUE
-
Built-in depth
62.5
-
Max. incandescent lamp load
2800
-
Max. load fluorescent lamp
1000
-
Max. load fluorescent lamp (Duo circuit)
1200
-
Hum-free
TRUE

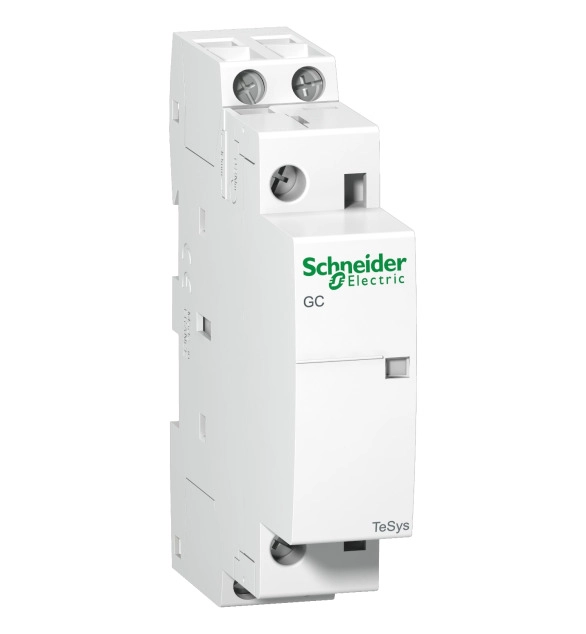

TeSys GC modular contactor, 1 pole (1NC), 25A/250V AC-7a (heating) and 8.5A/250V AC-7b (motor control), for household applications. Control voltage 220-240V AC 50Hz, state indicator on front. For use in modular panels, compact (18mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 12 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE).
