Контактор 25 KVAR COIL 220V50/60 | Spark & Co
  • 3D
|

СКУ: LC1DMKM7

Контактор 25 KVAR COIL 220V50/60

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Voltage type for actuating
    EV000460
  • Rated control supply voltage Us at AC 50HZ
    220
  • Rated control supply voltage Us at AC 60HZ
    220
  • Number of auxiliary contacts as normally open contact
    1
  • Number of auxiliary contacts as normally closed contact
    2
  • Number of normally open contacts as main contact
    3
  • Number of normally closed contacts as main contact
  • Rated blind power at 400 V, 50 Hz
    25

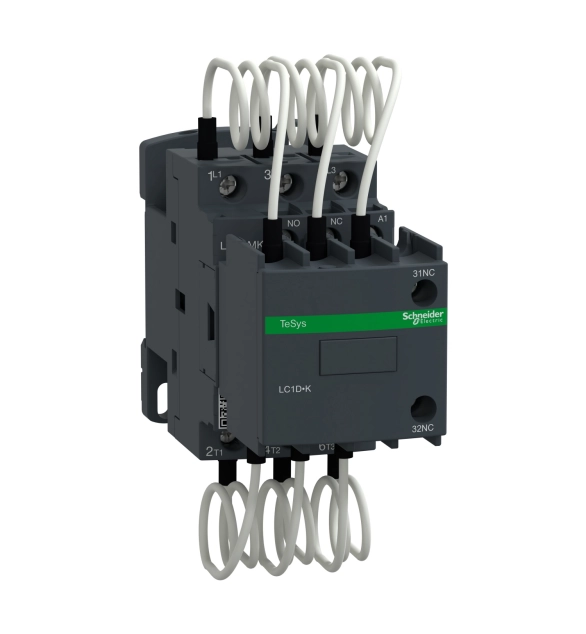

TeSys Deca contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 25kVAR/400/415V 50Hz (42kVAR/690V). It provides a 220V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Certified IEC 60947 and compliant with shunt capacitors standard IEC 60831.
