СКУ: PKF32W423
Контакт за стена 32A 2РТ IP44 82216 PKF32W423
-
Brand
Schneider Electric
-
Number of poles
3
-
Material
EV000139
-
Cable entry
EV004016
-
Connection system
EV001008
-
Clock hour position
6
-
Military model
FALSE
-
Identification colour
EV000080
-
Model
EV000384
-
Voltage according to EN 60309-2
EV011414
-
Insulated mounting
TRUE
-
Degree of protection (IP)
EV006418
-
IEC-amperage
32
-
Type of fastening
EV009033

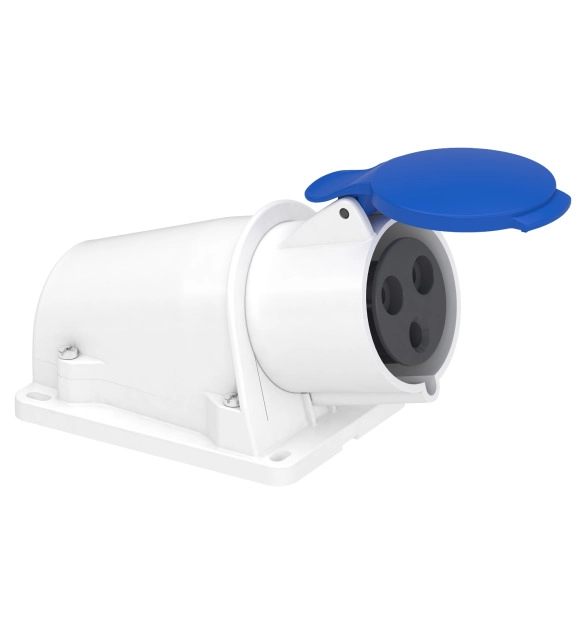

This Mureva PK socket with captive screws connection is angled wall mounted. It has 2P+E poles, rated current is 32A and the operating voltage is 200VAC to 250VAC. The dimensions of the base plate are (W) 90mm x (H) 160mm. The degree of protection is IP44 and IK08. The fire resistance is 750°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 32A is 2.5mm² to 10mm². The color of the socket is light grey (RAL 7035) with blue easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
