СКУ: A9A15306

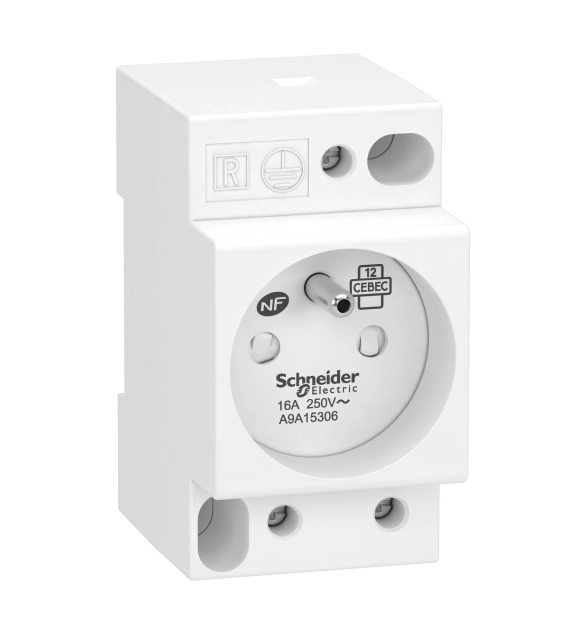

Контакт за шина MODULAR SOCKET 16A UE 250V 2P T
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Model
EV000154
-
Rated current
16
-
Width in number of modular spacings
2.5
-
Voltage type
EV000460
-
With hinged lid
TRUE
-
With enhanced contact protection
TRUE
-
Rated voltage
250
-
Built-in depth
63
-
With control lamp
FALSE
This Acti9 iPC product is a modular power socket allow low-voltage device to be connected to the electrical network. It is a standard 16A 2P+E power socket with protective cover on poles. It is compliant with NFC 15100 french standard. The tightening torque of connection is 1.2N.m for PZ2 screwdriver type. The connection allows rigid copper cables of 10mm². The connection allows flexible or with ferrule copper cables of 6 mm². The width in 9mm pitches is 5. The product color is white (RAL9003). The dimensions are (W) 45mm x (H) 84mm x (D) 60mm. The weight is 98g. The degree of protection is IP20 at terminals and IP40 in enclosure. The operating temperature is -25°C to +70°C. The storage temperature is -40°C to +80°C. It complies with IEC 60884-1, NF C 15-100 and NF C 61-314 standard.
