СКУ: NU301754

Контакт Шуко + USB C 10.5W, антрацит

  • Brand
    Schneider Electric
  • Material
    EV000139
  • Transparent
    FALSE
  • Number of phases
    1
  • Frequency
    50
  • Nominal voltage
    230
  • Lockable
    FALSE
  • Material quality
    EV000403
  • Insulated mounting
    FALSE
  • Number of modules (module system)
    2
  • With signal lamp
    FALSE
  • Imprint/indication
    EV000494
  • Eject-mechanism
    FALSE
  • Metallic colour
    FALSE
  • Rotated central insert
    FALSE
  • Fault current protection
    FALSE
  • Nominal current
    16
  • Over voltage protection
    FALSE
  • Mounting method
    EV000383
  • With on/off switch
    FALSE
  • Special power supply
    EV006426
  • Compatible with Apple HomeKit
    FALSE
  • Compatible with Google Assistant
    FALSE
  • Compatible with Amazon Alexa
    FALSE
  • Anti-bacterial treatment
    FALSE
  • IFTTT support available
    FALSE
  • With function lighting
    FALSE
  • With orientation lighting
    FALSE
  • Surface finishing
    EV000146
  • Halogen free
    TRUE
  • With enhanced contact protection
    TRUE
  • With loop through function
    FALSE
  • With miniature fuse
    FALSE
  • For heavy conditions (according to VDE)
    FALSE
  • Number of units
    1
  • Protective earth pin round
    FALSE
  • Surface protection
    EV000154
  • Number of active pins (round)
    2
  • With hinged lid
    FALSE
  • Suitable for degree of protection (IP)
    EV006405
  • Protective contact
    TRUE
  • Label space/information surface
    FALSE
  • Min. depth of built-in installation box
    40
  • Colour
    EV000309
  • RAL-number (similar)
    7021
  • Model
    EV002727
  • Impact strength
    EV006810
  • With built-in USB power supply
    TRUE
  • Width of device
    45
  • Height of device
    45
  • Connection type
    EV000154
  • Depth of device
    37
  • Type of fastening
    EV010006
  • Type of USB power supply
    EV000084

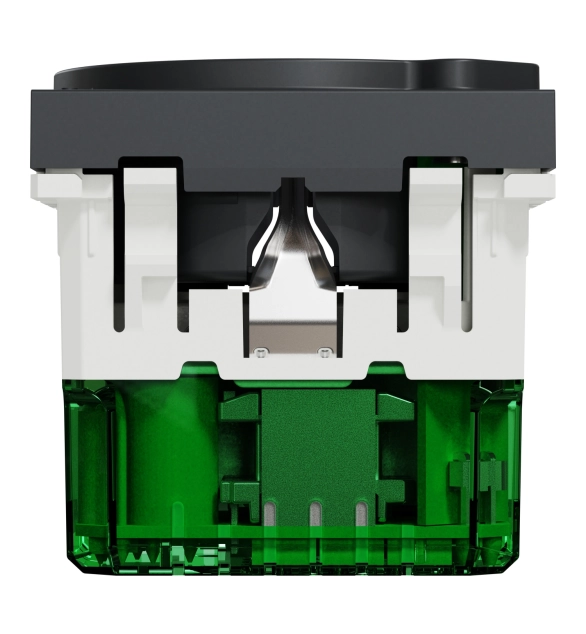

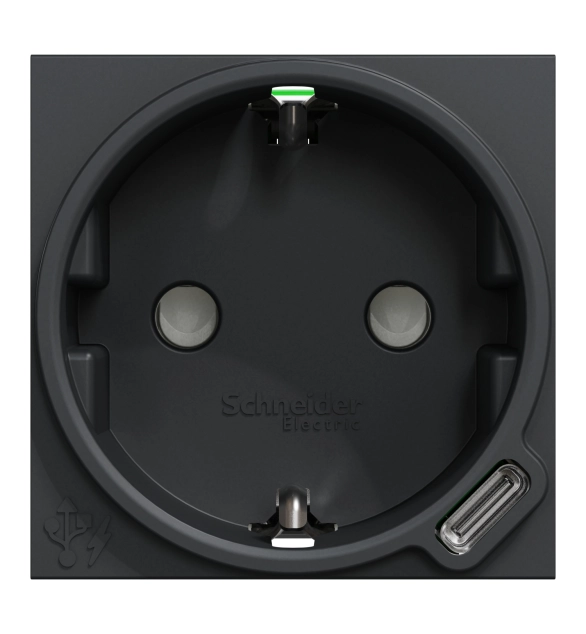

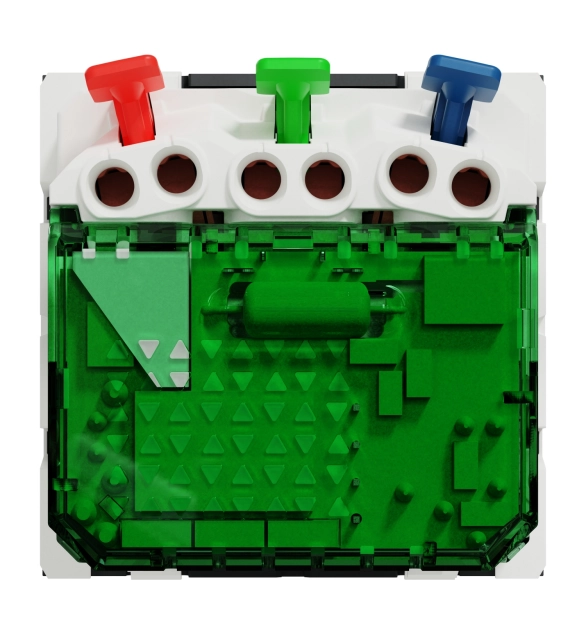

The New Unica socket outlet with USB charger is a modern and sophisticated power supply. It respects the Schuko standard, and has a 2P+E pole configuration with shutters for added protection. It features a USB-C charger that delivers 10.5W power output. It has a flush design, which prevents dust accumulation. The device has 2 modules, and its operational voltage is 230VAC at 50/60Hz. The color of the device is anthracite, and it has a matt surface finish. It has CE, NF certifications. For installation, the release buttons of the screwless terminal allow for better ergonomics which saves time, and they have different colors for easy identification. The dimensions of the product are (W) 45mm x (H) 45mm x (D) 43.9mm. It has an IP20 degree of protection. The device operates in temperatures between -5°C to 50°C. The device is compliant with the IEC 60884-1 standard. New Unica is a modular range that offers a wide variety of products and functions with a sleek and timeless aesthetic that integrate well with other installations. It is designed with clever features to be flexible, easy to understand and quick to install, providing convenient solutions for customer requirements.
