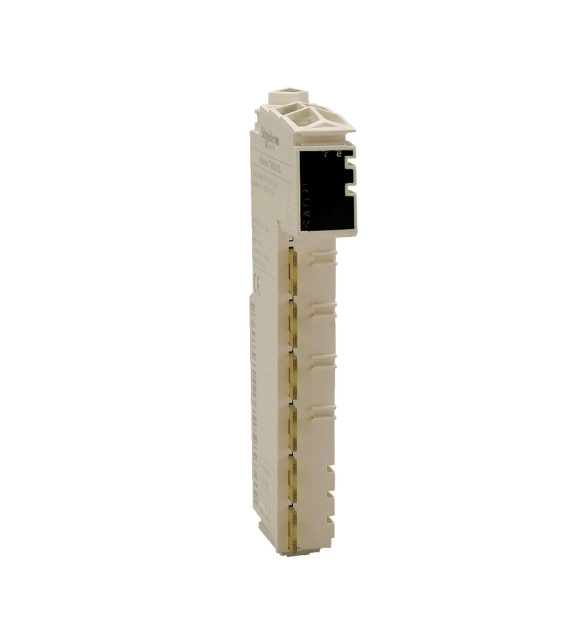

СКУ: TM5SAI4PHK
КомплектTM5SAI4PH+база,захранване и терм
-
Brand
Schneider Electric
-
Performance level according to EN ISO 13849-1
EV000494
-
Appendant operation agent (Ex ia)
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Suitable for safety functions
FALSE
-
Type of electric connection
EV000154
-
Analogue inputs configurable
FALSE
-
Analogue outputs configurable
FALSE
-
Explosion safety category for dust
EV000154
-
Explosion safety category for gas
EV000154
-
Input, thermocouple
FALSE
-
Input signal, configurable
FALSE
-
Input, resistor
FALSE
-
Input, resistance thermometer
FALSE
-
Input, current
FALSE
-
Input, voltage
FALSE
-
Output signal configurable
FALSE
-
Output, voltage
FALSE
-
Output, current
FALSE
-
Resolution of the analogue inputs
16
-
Number of analogue inputs
4
-
Width
12.5
-
Height
99
-
Depth
75
-
SIL according to IEC 61508
EV000599
-
Number of analogue outputs
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This kit is made of input module TM5SAI4PH, a terminal block TM5ACTB12 and a bus base TM5ACBM11. The analogue input module provides 4 inputs with 16bit resolution. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. It has a Pt 100/Pt 1000 temperature probe of -200°C to 850°C input type with internal supply. It is an IP20 rated product. It weighs 0.075kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
