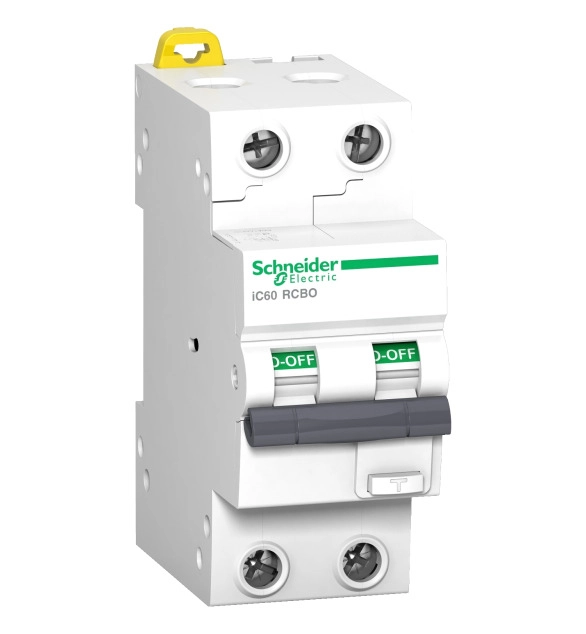

Комбинирана ДТЗ A9 iC60 RCBO 2P C 16A 30mA AC 10000A

This Acti9 iC60 product is a modular residual current breaker with overcurrent protection (RCBO). It is a 2P circuit breaker with 2 protected poles, 16A rated current, and a C tripping curve. The earth-leakage protection class is AC type with a sensitivity of 30mA, and the earth-leakage protection time delay is instantaneous. The rated short-circuit breaking capacity is 10000A at 220VAC to 240VAC, conforming to EN/IEC 61009-2-1 standard, and 15kA at 220VAC to 240VAC, conforming to EN/IEC 60947-2 standard. Its unique VisiTrip indicator reduces intervention time by displaying the faulty circuit. The VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast-closing mechanism independent of manual operation improves its service life. This product complies with EN/IEC 60947-2 and EN/IEC 61009-2-1 standards. The electrical endurance goes up to 10000 cycles, and the mechanical endurance goes up to 20000 cycles. The rated operational voltage is from 220VAC to 240VAC with an operating frequency of 50Hz. The rated insulation voltage is 500VAC, and the rated impulse withstand voltage is 4kV. It can be clipped on a DIN rail. The width in 9mm pitches is 4. The dimensions are (W) 36mm x (H) 86mm x (D) 78mm. The product colour is white (RAL 9003). The weight is 273g. It offers reliable protection with an IP20 rating on its terminals, which is enhanced to IP40 when placed in a modular enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 70°C.
