СКУ: A9E15120
Ключ CMB 10 A 10A 2P U 415V CA
-
Brand
Schneider Electric
-
Number of poles
2
-
Width in number of modular spacings
2
-
Degree of protection (IP)
EV006415
-
Rated current
10
-
Rated voltage
415
-
Voltage type
EV000460
-
With signal lamp
FALSE
-
Number of contacts as change-over contact
2
-
Imprint/indication
EV000154
-
Built-in depth
75
-
Colour calotte
EV000202
-
Forced segregation (according to DIN VDE 0113)
TRUE
-
Min. rated voltage
415
-
Number of contacts as normally open contact
-
Number of contacts as normally closed contact
-
Switching function
EV006259

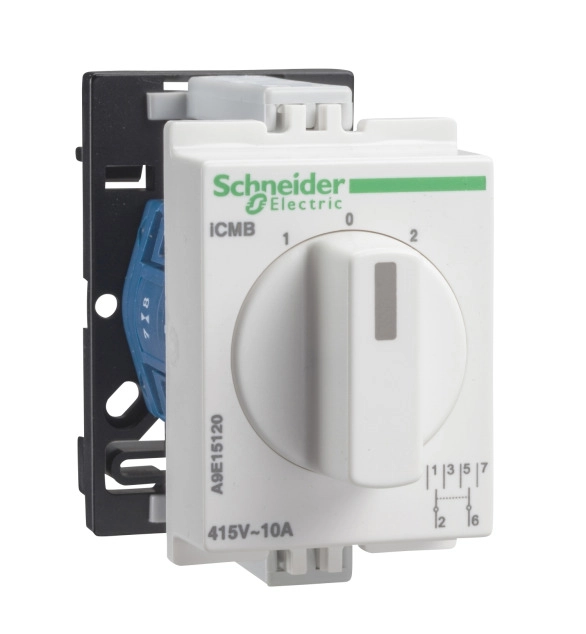

This Acti9 iCM is a selector switch used for the manual control of electric circuits. It is 2 positions switch with 2 changeover contacts (2 C/O). The phase-separated wall can be divided to allow all the types of com busbar to pass through. It comes with staggered terminals to simplify connection. The tightening torque of connection is 1N.m for PZ1 screwdriver type. The Ue rated operational voltage is 415VAC. The Ie rated operational current is 10A. The operating frequency is 50Hz. The connection allows rigid copper cables from 0.5mm² minimum to 2x2.5mm² maximum. The connection allows flexible or with ferrule copper cables from 0.5mm² minimum to 2x2.5mm² maximum. The number of cycles open and close (O-C) is 1000000. The endurance is 200000 operations with AC21A current category under cos phi=0.8. The width in 9mm pitches is 4. The dimensions are (W) 36mm x (H) 60mm x (D) 75mm. The pollution degree is 3. The tropicalization is treatment 2 (relative humidity 95% at 55°C). The operational temperature is from -20°C to +55°C. The storage temperature is from -25°C to +80°C. It complies with VDE 0660 part 107, IEC/EN 60947-3 and UL standards.
