Ключ Acti9 iSW - 4 полюса - 20 A - 415V | Spark & Co
  • 3D
  • 3D
|

СКУ: A9S60420

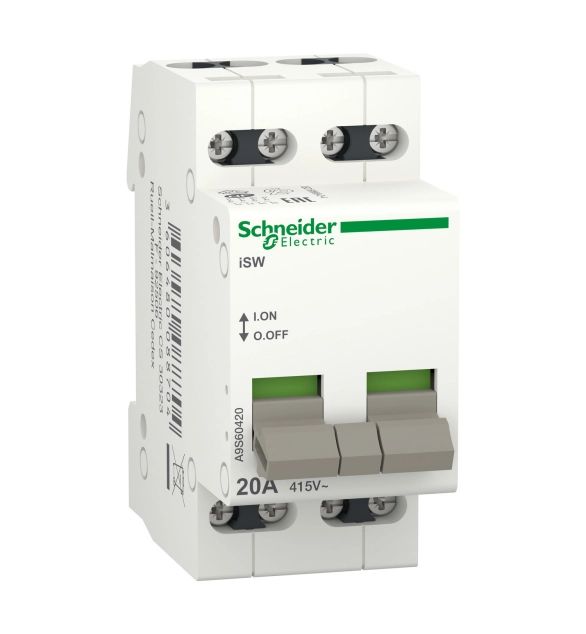

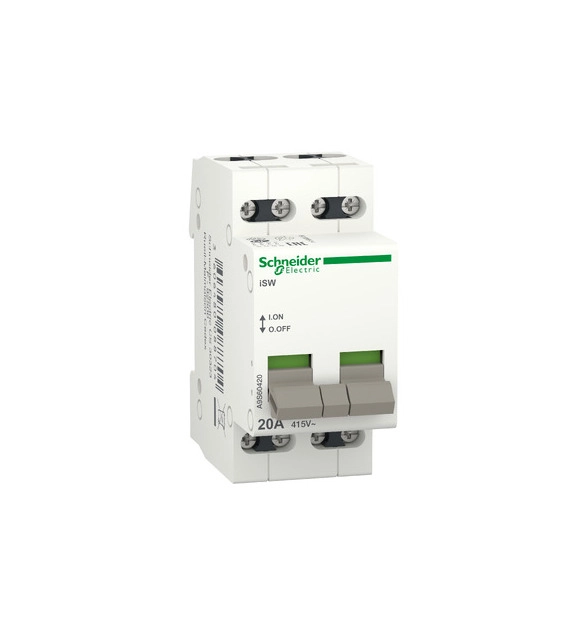

Ключ Acti9 iSW - 4 полюса - 20 A - 415V

  • Brand
    Schneider Electric
  • Number of contacts as normally open contact
    1
  • Number of poles
    1
  • Degree of protection (IP)
    EV006405
  • Width in number of modular spacings
    1
  • Rated current
    20
  • Voltage type
    EV000460
  • Imprint/indication
    EV000154
  • Number of contacts as normally closed contact
  • Number of contacts as change-over contact
  • Rated voltage
    250
  • Forced segregation (according to DIN VDE 0113)
    TRUE
  • With signal lamp
    TRUE
  • Colour calotte
    EV000233
  • Built-in depth
    75.5
  • Switching function
    EV007122
  • Min. rated voltage
    230
  • Max. lamp power
    1.2

This Acti9 iSW product is a modular and reliable switch disconnector. it is a 3P, rated current is 40A, and operating voltage is 415VAC. Electrical endurance goes up to 15000 cycles, and Mechanical endurance goes up to 20000 cycles. The operating temperature is -25°C to +60°C. The storage temperature is -40°C to +85°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 6. The dimensions are (W) 54mm x (H) 85mm x (D) 73mm. This switch disconnector is used for control and isolation. This product complies with EN/IEC 60947-3 standard.
