СКУ: A9E15123

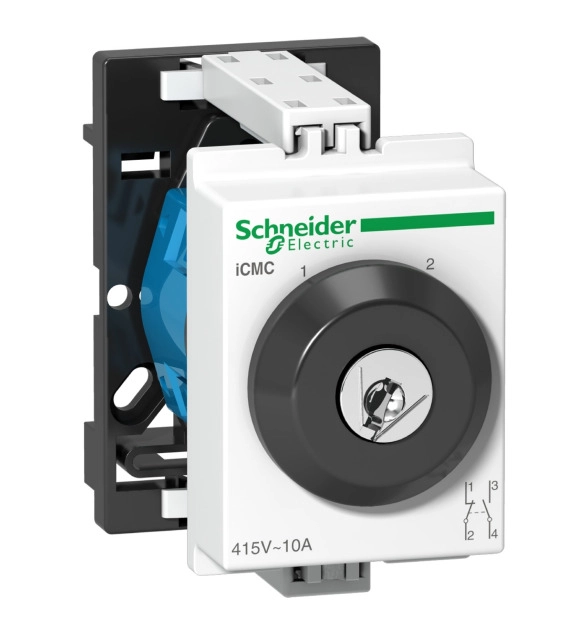

Ключ 2 POSITIONS WITH KEY SWITCH ICMC 10A 2P
-
Brand
Schneider Electric
-
Number of contacts as normally open contact
1
-
Number of contacts as normally closed contact
1
-
Number of poles
2
-
Width in number of modular spacings
2
-
Degree of protection (IP)
EV006415
-
Rated current
10
-
Rated voltage
415
-
Voltage type
EV000460
-
With signal lamp
FALSE
-
Imprint/indication
EV000154
-
Colour calotte
EV000202
-
Forced segregation (according to DIN VDE 0113)
TRUE
-
Min. rated voltage
415
-
Number of contacts as change-over contact
-
Switching function
EV006259
-
Built-in depth
72
This Acti9 iCM is a selector switch used for the manual control of electric circuits with key. It is 2 positions switch with contacts type 1 NO+1NC. The phase-separated wall can be divided to allow all the types of com busbar to pass through. It comes with staggered terminals to simplify connection. The tightening torque of connection is 1N.m for PZ1 screwdriver type. The Ue rated operational voltage is 415VAC. The Ie rated operational current is 10A. The operating frequency is 50Hz. The connection allows rigid copper cables from 0.5mm² minimum to 2x2.5mm² maximum. The connection allows flexible or with ferrule copper cables from 0.5mm² minimum to 2x2.5mm² maximum. The number of cycles open and close (O-C) is 1000000. The endurance is 200000 operations with AC21A current category under cos phi=0.8. The width in 9mm pitches is 4. The dimensions are (W) 36mm x (H) 60mm x (D) 72mm. The pollution degree is 3. The tropicalization is treatment 2 (relative humidity 95% at 55°C). The operational temperature is from -20°C to +55°C. The storage temperature is from -25°C to +80°C. It complies with VDE 0660 part 107, IEC/EN 60947-3 and UL standards.
