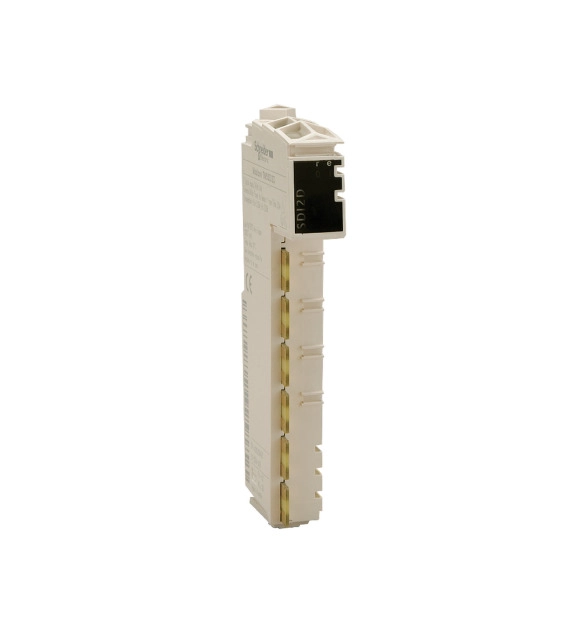

Kit IO TM5SDI12D + bus base & term block

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This kit is made of counter module TM5SDI12D, a terminal block TM5ACTB12 and a bus base TM5ACBM11. It is a composition kit providing providing 12 inputs with sink input logic with an input voltage of 24V DC and a maximum power dissipation of 1.93W. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. It is furnished with 1 wire for electrical connection. It is an IP20 rated product. The housing colour is white. It weighs 0.065kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. The kit includes bus sub-base TM5ACBM11, terminal block TM5ACTB12 and I/O module TM5SDI12D. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
