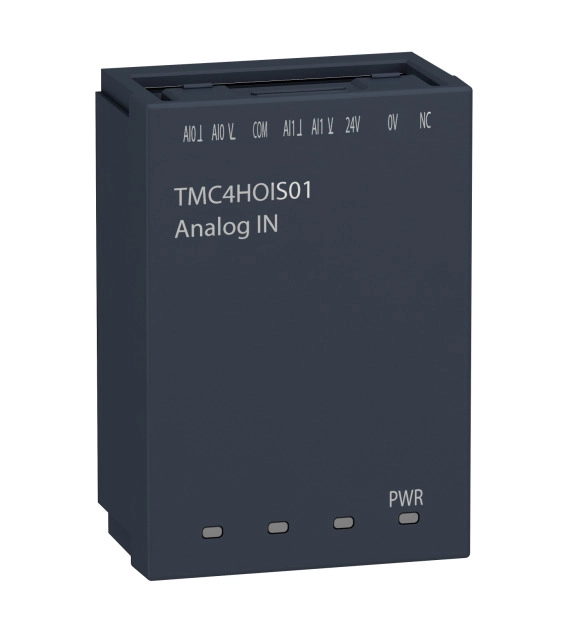

СКУ: TMC4HOIS01
Касета M241 - 2 аналогов вход
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Explosion safety category for dust
EV000494
-
Explosion safety category for gas
EV000494
-
Appendant operation agent (Ex ia)
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Suitable for safety functions
FALSE
-
Height
50
-
Analogue inputs configurable
FALSE
-
Analogue outputs configurable
FALSE
-
Width
34
-
Input, thermocouple
FALSE
-
Input signal, configurable
FALSE
-
Input, resistor
FALSE
-
Input, resistance thermometer
FALSE
-
Output signal configurable
FALSE
-
Resolution of the analogue inputs
12
-
Input, current
TRUE
-
Input, voltage
TRUE
-
Output, voltage
FALSE
-
Output, current
FALSE
-
Number of analogue outputs
-
Number of analogue inputs
1
-
Depth
21
This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This application cartridge is for Modicon M241 logic controllers. Its dual versatile analog inputs accept voltage (0–10V) or current (0–20mA / 4–20mA) signals, ideal for load cell interfacing. This application cartridge enables precise load measurement and control in hoisting applications. It provides 2 analog inputs (voltage or current) for hoisting load cell with 16bit resolution. It has a sampling rate of 10ms. It measures 34mm (Width) x 21mm (Depth) x 50mm (Height) and it weighs 0.055kg. It is certified by CE, IACS E10, RCM, CSA, cULus, and Standards ANSI/ISA, CSA C22.2, EN/IEC 61131-2, UL 1604, UL 508, Marine (LR, ABS, DNV, GL). It is compatible with the TM241 type of controllers. It is sold in a 1-piece package. It installs in a specific slot on controller, when removing the cartridge cover. Achieve benchmark performance while increasing profitability with Modicon M221 through intuitive machine programming with EcoStruxure Machine Expert Basic.
