СКУ: TMCR2AQ2C

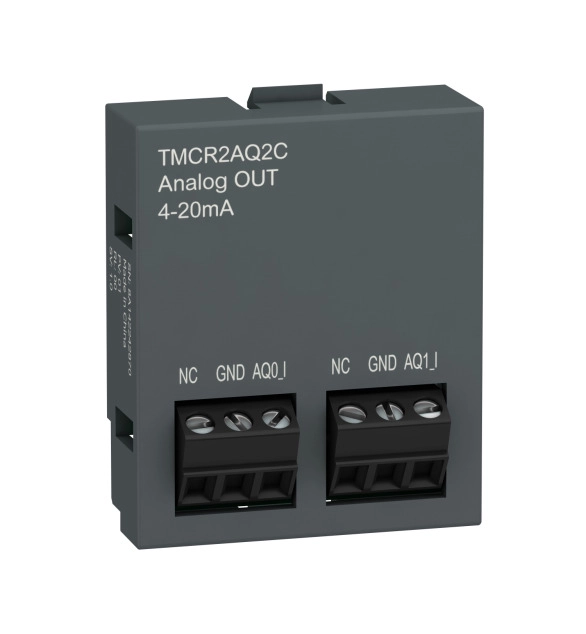

Касета M200 - 2 аналогови изходи (ток)
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Appendant operation agent (Ex ia)
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Suitable for safety functions
FALSE
-
Depth
15
-
Analogue inputs configurable
FALSE
-
Analogue outputs configurable
FALSE
-
Explosion safety category for dust
EV000154
-
Explosion safety category for gas
EV000154
-
Height
41
-
Input, thermocouple
FALSE
-
Input signal, configurable
FALSE
-
Input, resistor
FALSE
-
Input, resistance thermometer
FALSE
-
Output, voltage
TRUE
-
Output signal configurable
FALSE
-
Resolution of the analogue outputs
12
-
Resolution of the analogue inputs
12
-
Number of analogue outputs
2
-
Input, current
TRUE
-
Input, voltage
TRUE
-
Number of analogue inputs
2
-
Output, current
FALSE
-
Width
35
This product is part of the Easy modicon M200 range, an offer of logic controllers for up to 168 IO. This optional cartridge provides 2 additional analog outputs to M200 controllers. The 2 analog outputs are configured as current 4mA to 20mA. This IO cartridge provides additional analog outputs (12bits resolution) to the controller. The data conversion time is 20ms. The outputs are wired with twisted shielded pairs cable on the screw terminal block of the cartridge. It is 41mm high, 15mm deep, and 35mm wide. It weighs 0.012kg. This optional cartridge provides 2 additional analog outputs to the controller. This product is marqued CE, and certified by IEC/EN 61131-2, UL 508, and IEC/EN 61010-2-201. This cartridge is an optional part of Modicon M200 logic controller. It installs in a specific slot on controller, when removing the cartridge cover. Entry-level plc perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.
