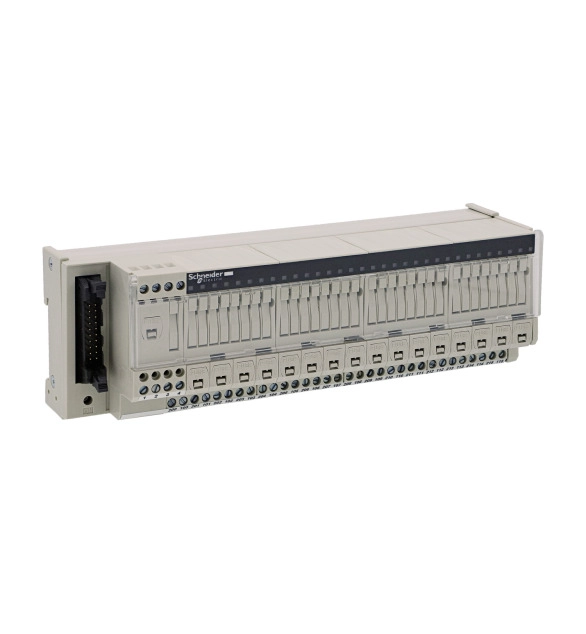

СКУ: ABE7H16S43
Кабелна основа 16вх.предп.+DISCONN.
-
Brand
Schneider Electric
-
Material housing
EV000139
-
Explosion safety category for dust
EV000494
-
Explosion safety category for gas
EV000494
-
Height
70
-
With LED indication
TRUE
-
Degree of protection (IP)
EV006409
-
With potential separation
FALSE
-
Operating temperature
-5
-
Operating voltage
24
-
Material of contact surface
EV000154
-
Rated voltage
24
-
Colour housing
EV000270
-
Width
206
-
Connection for NPN-sensors
FALSE
-
Thread sleeves sensor/actuator slots
EV000154
-
Material insulation body
EV000154
-
Type of branches for sensor-/actuator cables
EV000154
-
Fix cable version suitable for cable guide chain
FALSE
-
Number of sensor-/actuator-slots
1
-
Material contact body
EV009430
-
Pollution degree
EV000600
-
Cable length configurable
TRUE
-
Max. current carrying capacity per socket
1.8
-
Max. total current
1.8
-
Number of poles sensor/actuator slots
16
-
Number of channels per connector slot
16
-
Diameter contact female
-
Length of the preassembled cable
-
Cable outer diameter for cable gland
-
Max. current carrying capacity per I/O signal
0.125
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This passive discrete I/O sub-base offers 1 switch disconnector per channel. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. The width of this product is 206mm. It weighs 0.64kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS, UL, GL and EAC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
