СКУ: EVP1CNX32322

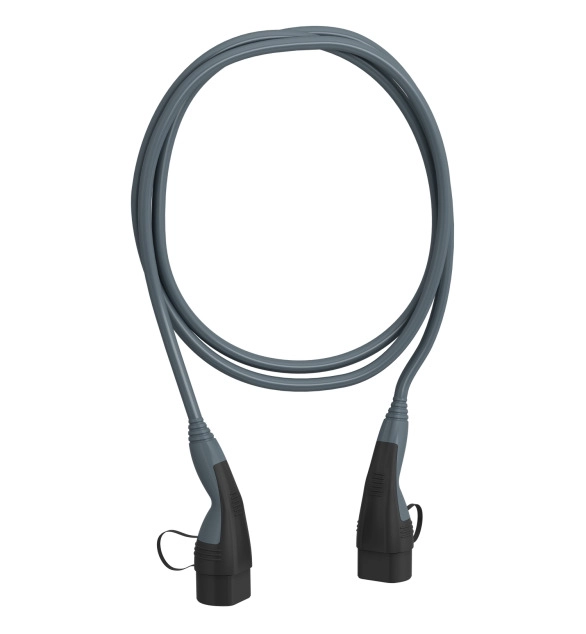

Кабел за зарядна станция EVlink, 10m, 32A, 3-Phase, T2 конектор във всеки край на кабела
-
Brand
Schneider Electric
-
Surface treatment contacts
EV003715
-
Contact material
EV000154
-
Type of current
EV011499
-
Nominal voltage
415
-
Nominal current
32
-
Number of communication conductors
1
-
Type infrastructure side
EV011501
-
Type vehicle side
EV011501
-
Cable type
EV000164
-
With Incable Control Box (ICCB)
FALSE
-
Charging mode
EV011148
-
With temperature sensor
FALSE
-
Cable length
10
This EVlink cabling accessory is a three-phase charging cable allowing to connect to an electric vehicle. It can provide a In rated current of 32A on a Us rated supply voltage of 380VAC up to 415VAC. The frequency is 50Hz to 60Hz. The cable length is 10m. At charging station end, as well as at vehicle end, the cable has T2 connector with silver plated contacts limiting overheating. The IP degree of protection is IP44. The IK degree of protection is IK10. The operating temperature is between -30°C to 50°C. The storage temperature is between -40°C to 80°C.
