СКУ: SDD112466
Изход за данни CAT 6 UTP, RJ45, крем
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Mechanical coding
FALSE
-
Duct installation
FALSE
-
With terminal resistor
FALSE
-
Floor box/sub-floor mounted
FALSE
-
Flush-mounted installation
TRUE
-
Shielded buses
FALSE
-
Outlet direction
EV000164
-
Shielded housing
FALSE
-
Separate earthing connection
FALSE
-
Suitable for number of connectors
2
-
Separate strain relief
FALSE
-
With dust cover
FALSE
-
Assembly arrangement
EV006345
-
Width of device
73
-
Height of device
73
-
Type of connector
EV000013
-
Connection type
EV001308
-
Colour coding
TRUE
-
With label space
FALSE
-
With buses/couplings
TRUE
-
Design suitable
TRUE
-
Surface mounting
FALSE
-
Type of fastening
EV000154
-
Colour
EV000279
-
Depth of device
37
-
RAL-number
1013
-
Category
EV009583
-
Mounting method shielding connection
EV000494

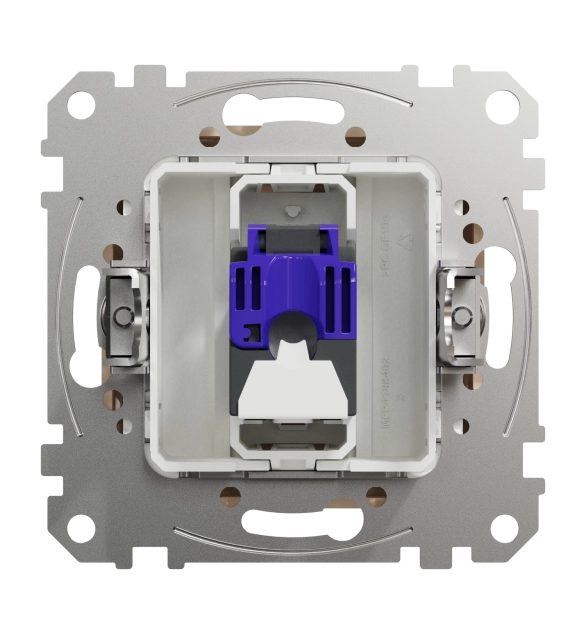

Sedna Design & Elements data socket by Schneider Electric is a mechanism with fixing frame and cover plate for communication purposes. It’s a double RJ45 Data socket outlet. It is provided with Category 6A UTP(Unshielded Twisted Pair) RJ45 Data socket. Its matching mounting box can be recessed into the surface of the wall with flush type. The dimensions of the product are (W) 73mm x (H) 73mm x (D) 37mm. It is made of thermoplastic ABS-UV stabilised. The color of the product is beige (RAL 1013) with glossy surface finish. The Ambient air temperature for operation is from -25°C up to +55°C. It reaches IP20 degree of protection. Sedna Design & Elements is a new generation of electrical switches inspired by fashion and interior design. With modern lines that reflect today’s trends and a refined aesthetic, Sedna is more than an afterthought. Sedna Design & Elements goes even further in terms of ergonomics, ease of installation and use, reliability and quality finishes. The product complies with the ISO 8877 standard.
