СКУ: A9S60320
iSW 3P 20A
-
Brand
Schneider Electric
-
Number of contacts as normally open contact
1
-
Number of poles
1
-
Degree of protection (IP)
EV006405
-
Width in number of modular spacings
1
-
Rated current
125
-
Voltage type
EV000460
-
Rated voltage
240
-
With signal lamp
FALSE
-
Imprint/indication
EV000154
-
Number of contacts as normally closed contact
-
Number of contacts as change-over contact
-
Colour calotte
EV000270
-
Switching function
EV000397
-
Short-circuit breaking capacity (Icw)
1.5
-
Built-in depth
75.5
-
Rated switching capacity
5

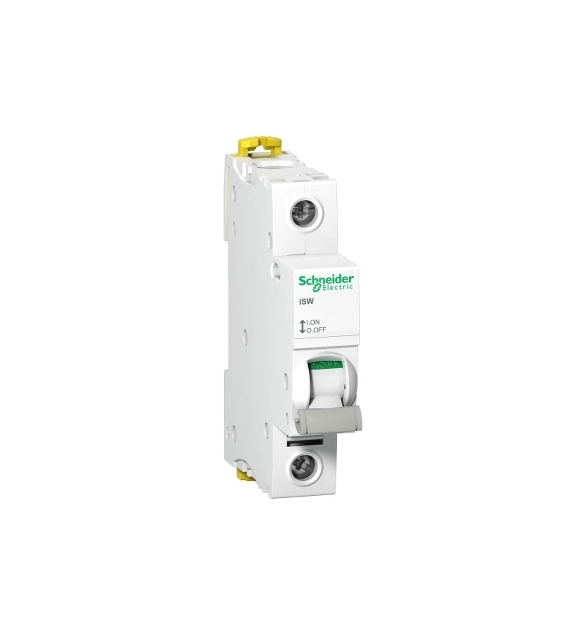

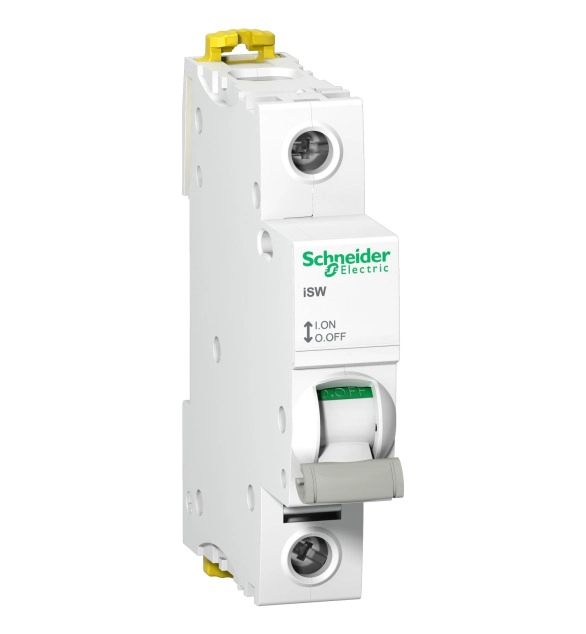

This Acti9 iSW is a modular and reliable switch disconnector. it is a 1P, rated current is 20A, and operating voltage is 250VAC. Electrical endurance goes up to 30000 cycles, and Mechanical endurance goes up to 300000 cycles. The operating temperature is -20°C to +50°C. The storage temperature is -40°C to +70°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 77mm x (D) 70mm. This switch disconnector is used for control. This product is compliant with EN/IEC 60669-2-4.
